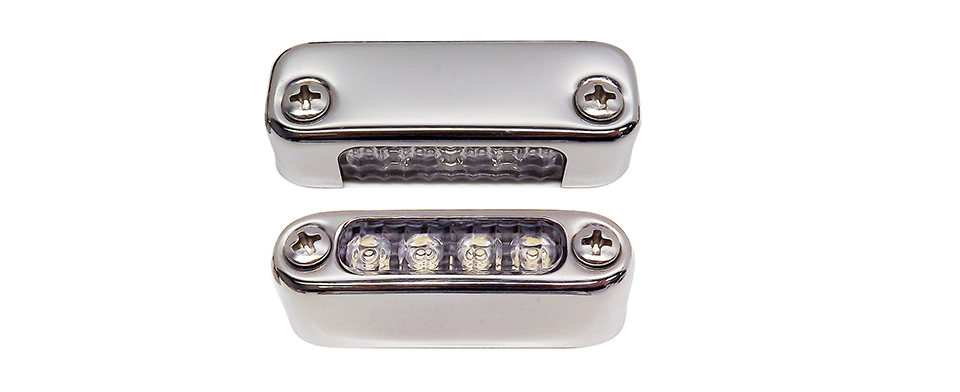

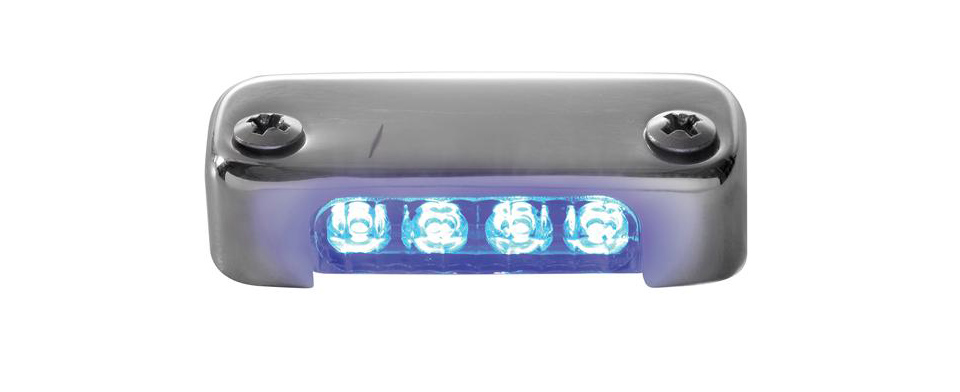

D04 Linear Dragon Lights
D04 Linear Dragon Lights
Technical Features
- Completely sealed IP68 rated design
- Easy installation - two #4 screws
- 316 stainless steel cover
- Cover also available in black and white powder coat
- Life performance: 50,000 hours
- WIRE COLORS
Black – Ground, Colored (LED Color) – Positive
We packed four powerful LEDs in the smallest package possible. The D04 outperforms the competition in both light output and price. Choose from several LED colors and exterior finishes. The inner lamp body is made from automotive grade high impact polycarbonate that is sealed with our proprietary urethane potting, insuring many years of trouble free service.

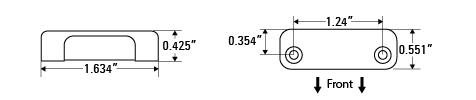

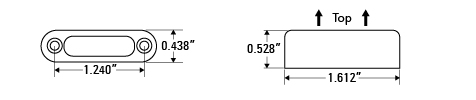

| Dimensions |
|
| LEDs | 4 |
| Lumens | 32 |
| Voltage | 9-14VDC |
| Current |
0.08A-0.12A - white/amber/red/deep red 0.04A-0.07A - blue/green 0.03A-0.05A - orange/ultraviolet |
| Connectors | 9" or 36" |
| Mounting | Mounts using (2) #4 screws |

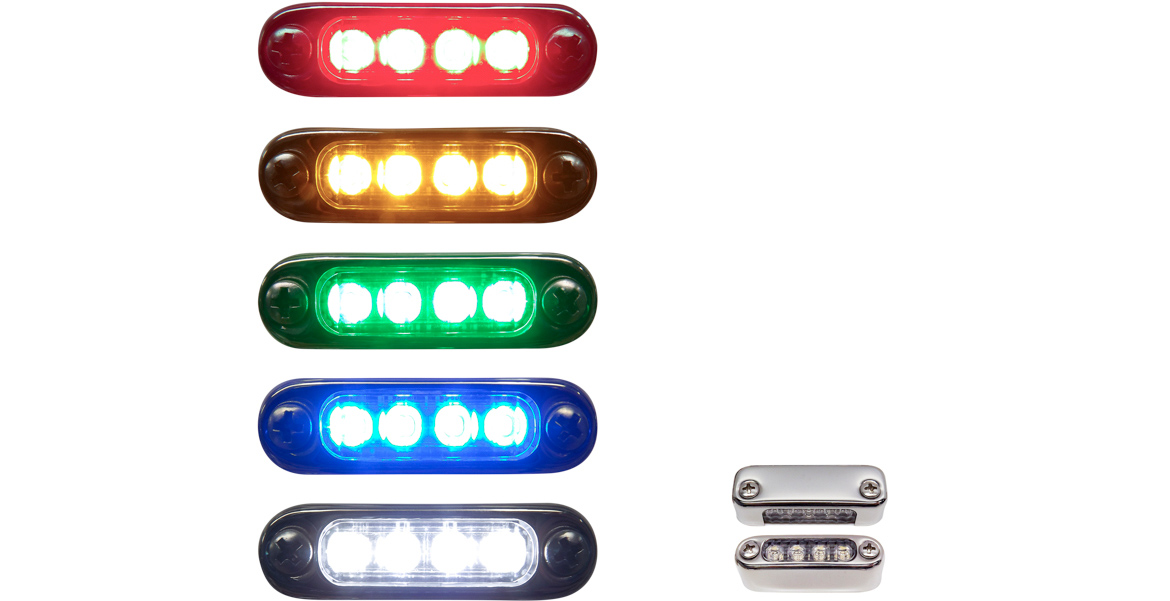

| LED Colors | White • Amber • Blue • Red • Deep Red • Green • Orange • UV |
| Angle |
|
| Wire Colors |
Black - Ground Colored (LED Color) - Positive |
| Ground | Black |
| Name | Description | LED | Lens | STD Pack | Connector | |
|---|---|---|---|---|---|---|
| D04-0BH0-1 |
Dragon Light Linear Horizontal Case Black
|
50 | - | |||
| D04-0BV0-1 |
Dragon Light Linear Vertical Case Black
|
50 | - | |||
| D04-0SH0-1 |
Dragon Light Linear Horizontal Case SS
|
50 | - | |||
| D04-0SV0-1 |
Dragon Light Linear Vertical Case SS
|
50 | - | |||
| D04-0WH0-1 |
Dragon Light Linear Horizontal Case White
|
50 | - | |||
| D04-0WV0-1 |
Dragon Light Linear Vertical Case White
|
50 | - | |||
| D04-A000-1 |
Dragon Light Linear Body Amber
|
 |
 |
50 | Pigtail (9") | |
| D04-A001-1 |
Dragon Light Linear Body Amber 36"
|
|
|
50 | Pigtail (36") | |
| D04-B000-1 |
Dragon Light Linear Body Blue
|
 |
|
50 | Pigtail (9") | |
| D04-B001-1 |
Dragon Light Linear Body Blue 36"
|
|
|
50 | Pigtail (36") | |
| D04-D000-1 |
Dragon Light Linear Body Deep Red 9"
|
 |
|
50 | Pigtail (9") | |
| D04-D001-1 |
Dragon Light Linear Body Deep Red 36"
|
|
|
50 | Pigtail (36") | |
| D04-G000-1 |
Dragon Light Linear Body Green
|
 |
|
50 | Pigtail (9") | |
| D04-G001-1 |
Dragon Light Linear Body Green 36"
|
|
|
50 | Pigtail (36") | |
| D04-N001-1 |
Dragon Light Linear Body Orange 36"
|
 |
|
50 | Pigtail (36") | |
| D04-R000-1 |
Dragon Light Linear Body Red
|
 |
|
50 | Pigtail (9") | |
| D04-R001-1 |
Dragon Light Linear Body Red 36"
|
|
|
50 | Pigtail (36") | |
| D04-U001-1 |
Dragon Light Linear Body Ultraviolet 36"
|
 |
|
50 | Pigtail (36") | |
| D04-W000-1 |
Dragon Light Linear Body White
|
 |
|
50 | Pigtail (9") | |
| D04-W001-1 |
Dragon Light Linear Body White 36"
|
|
|
50 | Pigtail (36") | |
| D04-W00F-1 |
Dragon Light Linear Body White Flood
|
|
|
50 | Pigtail (9") |
