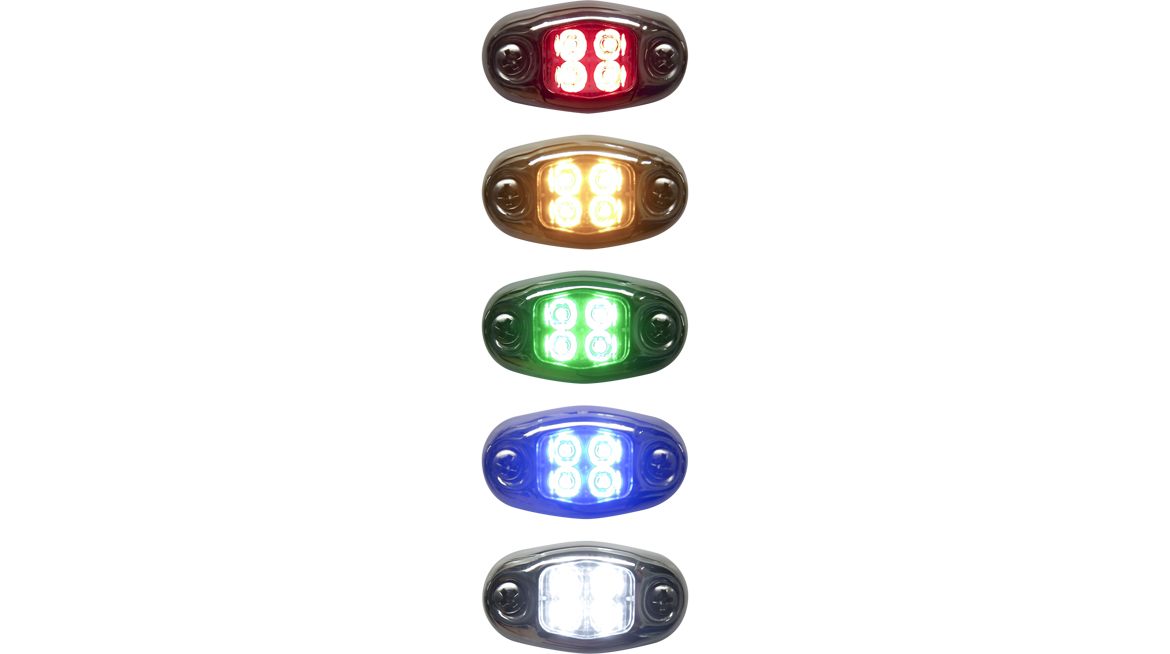

D14 Oval Dragon Lights
D14 Oval Dragon Lights
Technical Features
- Completely sealed IP68 rated design
- Easy installation - two #4 screws
- 316 stainless steel cover
- Cover also available in black and white powder coat
- Life performance: 50,000 hours
- WIRE COLORS
Black – Ground, Colored (LED Color) – Positive
We packed four powerful LEDs in the smallest package possible. It outperforms the competition in both light output and price. Choose from several LED colors and exterior finishes. The inner lamp body is made from automotive grade high impact polycarbonate that is sealed with our proprietary urethane potting, insuring many years of trouble free service. The durable inner lens body is sold separately from the high quality stainless steel cases. The corrosion resistant stainless steel cases are available in two styles and three finishes, including high polish as well as black and white powder coat.

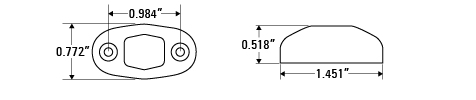

| Dimensions |
|
| LEDs | 4 |
| Lumens | 32 |
| Voltage | 9-14VDC |
| Current |
0.04A-0.07A - white/blue/green/amber/red/deep red/orange 0.03A-0.05A - ultraviolet |
| Connectors | 9" or 36" |
| Mounting | Mounts using (2) #4 screws |
| LED Colors | White • Amber • Blue • Red • Deep Red • Green • Orange • UV |
| Angle |
|
| Wire Colors |
Black - Ground Colored (LED Color) - Positive |
| Ground | Black |
Downloadable Resources
| Name | Description | LED | Lens | STD Pack | Connector | |
|---|---|---|---|---|---|---|
| D14-0B00-1 |
Dragon Light Oval Case Black
|
50 | - | |||
| D14-0S00-1 |
Dragon Light Oval Case SS
|
50 | - | |||
| D14-0W00-1 |
Dragon Light Oval Case White
|
50 | - | |||
| D14-A000-1 |
Dragon Light Oval Body Amber
|
 |
 |
50 | Pigtail (9") | |
| D14-A001-1 |
Dragon Light Oval Body Amber 36"
|
|
|
50 | Pigtail (36") | |
| D14-B000-1 |
Dragon Light Oval Body Blue
|
 |
|
50 | Pigtail (9") | |
| D14-B001-1 |
Dragon Light Oval Body Blue 36"
|
|
|
50 | Pigtail (36") | |
| D14-D001-1 |
Dragon Light Oval Body Deep Red 36"
|
 |
|
50 | Pigtail (36") | |
| D14-G000-1 |
Dragon Light Oval Body Green
|
 |
|
50 | Pigtail (9") | |
| D14-G001-1 |
Dragon Light Oval Body Green 36"
|
|
|
50 | Pigtail (36") | |
| D14-N001-1 |
Dragon Light Oval Body Orange 36"
|
 |
|
50 | Pigtail (36") | |
| D14-R000-1 |
Dragon Light Oval Body Red
|
 |
|
50 | Pigtail (9") | |
| D14-R001-1 |
Dragon Light Oval Body Red 36"
|
|
|
50 | Pigtail (36") | |
| D14-U000-1 |
Dragon Light Oval Body Ultraviolet - 9" Wire
|
 |
|
50 | Pigtail (9") | |
| D14-U001-1 |
Dragon Light Oval Body Ultraviolet 36"
|
|
|
50 | Pigtail (36") | |
| D14-W000-1 |
Dragon Light Oval Body White
|
 |
|
50 | Pigtail (9") | |
| D14-W001-1 |
Dragon Light Oval Body White 36"
|
|
|
50 | Pigtail (36") | |
| D14-W00F-1 |
Dragon Light Oval Body White Flood
|
|
|
50 | Pigtail (9") | |
| D14-W00M-1 |
D14 Dragon Light Oval Body White w/ 0.156 bullets
|
|
|
