E02 : Miniature Accent Light

  Features
  • New LED Accent Light
  • Built to last – Very tough design, providing a lifetime of area or walkway lighting
  • Reliable 100,000 hour life performance
  • Requires 3/4" hole and two #8 screws for installation
  • Uses our TecSeal Potting – Guaranteed Waterproof
  • IP 68 Rated
  • Has excellent UV and impact resistance – Very tough polycarbonate
  • 90 degree light projection

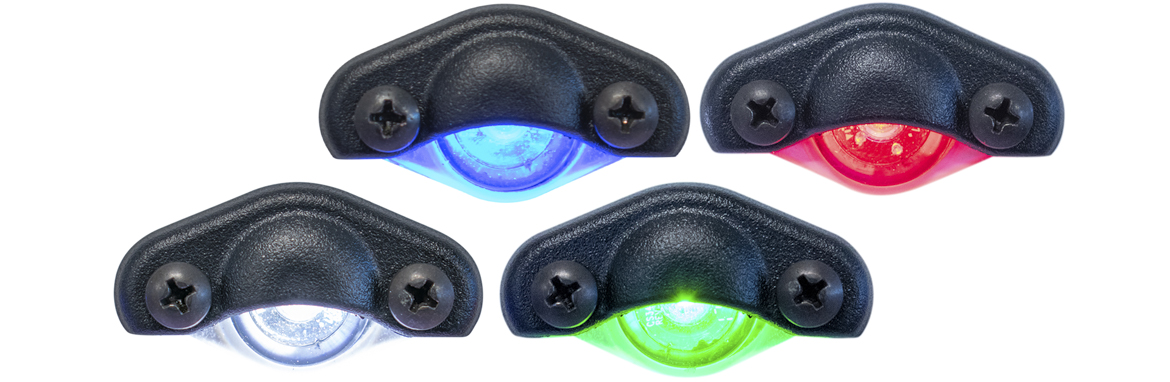

  • Comes in White, Blue, Red, and Green LED colors

  Specifications

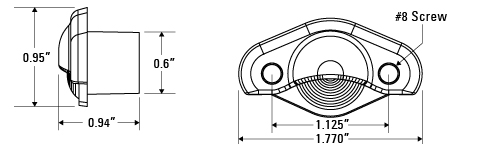

Dimensions:
  1.77"x 0.95"
LEDs: 1
Voltage: 9 - 14V DC
Current: 0.05A-0.07A Red
0.02A-0.03A Green/Blue
0.06A-0.08A White
Wire: 7" Sheathed Wire
Mounting: Surface mounts with two screws. (requires mounting hole in surface, approximately 3/4")
LED Colors: Red • Green • Blue • White

  Part Numbers
Part NumberDescriptionLED – LensStdPackConnector
E02-B000-1Miniature Accent Light, Blue, Clear Lens   100Pigtail (7")
E02-BB00-1Miniature Accent Light, Blue, Clear Lens, Black Cover   100Pigtail (7")
E02-G000-1Miniature Accent Light, Green, Clear Lens   100Pigtail (7")
E02-GB00-1Miniature Accent Light, Green, Clear Lens, Black Cover   100Pigtail (7")
E02-R000-1Miniature Accent Light, Red, Clear Lens   100Pigtail (7")
E02-RB00-1Miniature Accent Light, Red, Clear Lens, Black Cover   100Pigtail (7")
E02-W000-1Miniature Accent Light, White, Clear Lens,    100Pigtail (7")
E02-WB00-1Miniature Accent Light, White, Clear Lens, Black Cover   100Pigtail (7")

  Documentation

DocumentSize
  Specification Sheet45 KB
