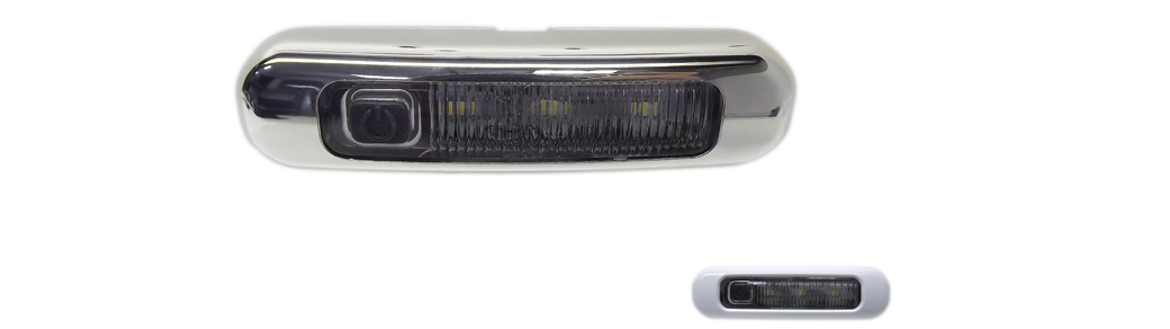

E05 Surface Mount Area Light
E05 Surface Mount Area Light
Technical Features
- Integrated On/Off Switch
- Available with 316 stainless steel or high-impact molded in color covers
- Great appearance with hidden fasteners
- Provides 220 lumens of brightness
- Can be mounted on flat or 1" round bar surfaces (w/ available adapter)
- WIRE COLORS
Black – Ground, White – Positive
This great option for interior area lighting has an integrated on/off switch and the ability to be mounted flat or on 1" round bar surface. 220 lumens of brightness, three cover options, and hidden fasteners give our E05 the adaptability, appearance and reliability needed for interior area solutions.

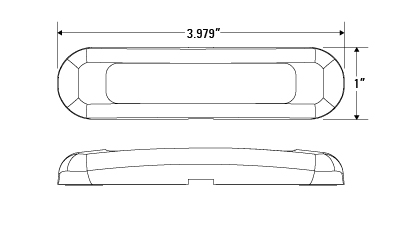

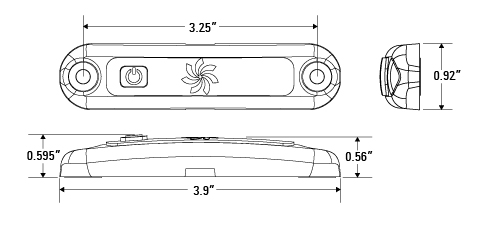

| Dimensions |
|
| LEDs | 3 |
| Lumens | 220 |
| Voltage | 9-14VDC |
| Current | 0.13A-0.18A |
| Connectors | 6" |
| Mounting |
Mounts with two screws hidden behind the cover Also available with curved back adapter for poles |
| LED Colors | White |
| Wire Colors |
Black -Ground White - Positive |
| Ground | Black |
| Name | Description | LED | Lens | STD Pack | Connector | |
|---|---|---|---|---|---|---|
| E05-0B00-1 |
Interior Area Light - 1" Round Bar Mt. Adapter
|
10 | Sheathed Pigtail (6") | |||
| E05-WBS0-1 |
Interior Area Light Surface Mt.White LED Black Cover
|
 |
 |
10 | Sheathed Pigtail (6") | |
| E05-WSS0-1 |
Interior Area Light Surface Mt, White LED SS Cover
|
|
|
10 | Sheathed Pigtail (6") | |
| E05-WSSV-1 |
**Int Area Lt Push Button SM Wht LED SS Cover Butt Splice
|
 |
|
10 | ||
| E05-WWS0-1 |
Interior Area Light, Surface Mt. White Cover
|
|
|
10 | Sheathed Pigtail (6") |
