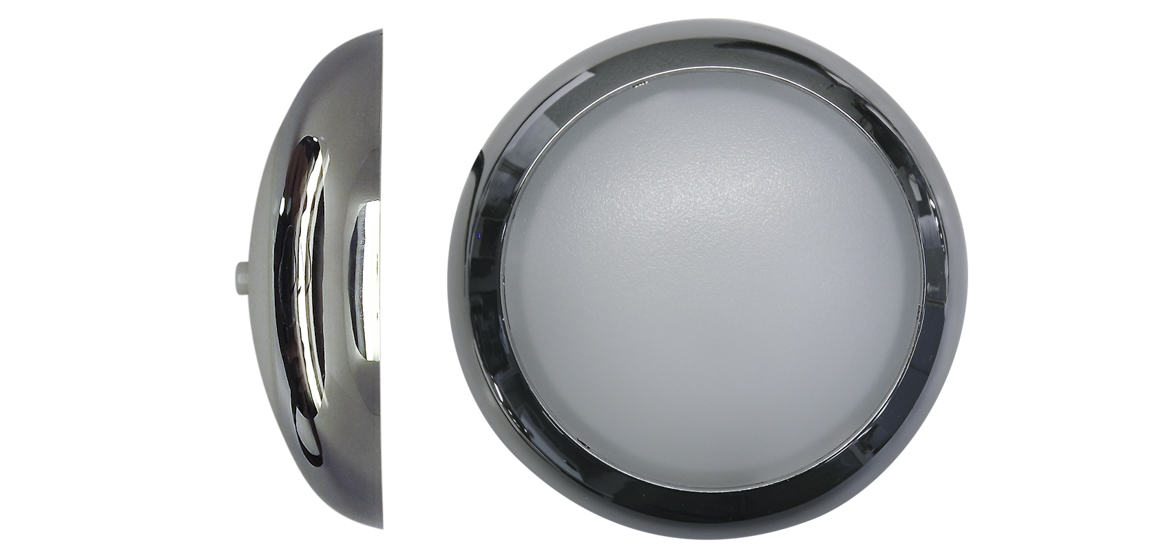

E28 : Surface Mount LED dome light - 4.5"
My Part List (0 items) $0.00
Features
- New surface mounted dome light - easy installation, requires 3/8” wire hole
- 4.5” Premium model available
- Bright: 350 Lumens
460 Lumens (premium) - Available with or without ON/OFF push button switch
- Three mounting screws concealed by trim ring
- Surface mounted design comes in 3” and 4.5” sizes
- Reliable performance over 50,000 hours
- Features diffused lens, clean low profile appearance
- Available with or without ON/OFF push button switch
- Reliable performance over 50,000 hours
Specifications

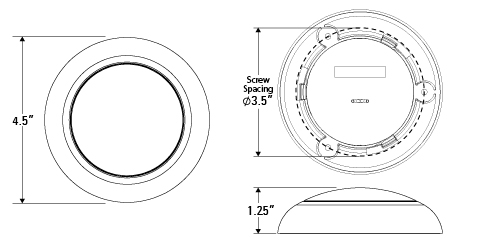

| Dimensions: | |
| LEDs: |
6 Standard 9 Premium |
| Lumens: |
350 Standard 525 Premium |
| Voltage: | 9 - 14V DC |
| Current: |
0.25A-0.31A Standard 0.38A-0.46A Premium |
| Wire: | 9" |
| Mounting: | Surface Mounted |
| LED Colors: | White • Warm White • Cool White |
| Angle: |  |
Part Numbers
| Part Number | Description | LED – Lens | StdPack | Connector |
| E27-L000-1 | 3" Surface Mounted Dome Light, Neutral White |   | 10 | Sheathed Pigtail |
| E27-M000-1 | 3" Surface Mounted Dome Light, Warm White |  | 10 | Sheathed Pigtail |
| E27-W000-1 | 3" Surface Mounted Dome Light, Cool White |  | 10 | Sheathed Pigtail |
| E28-L000-1 | 4.5" Surface Mounted Dome Light, Neutral White | | 10 | Sheathed Pigtail |
| E28-L0S0-1 | 4.5" Surface Mounted Dome Light, Neutral White, w/Switch | | 10 | Sheathed Pigtail |
| E28-LP00-1 | 4.5" Surface Mounted Premium Dome Light, Neutral White | | 10 | Sheathed Pigtail |
| E28-LP0B-1 | 4.5" Surface Mounted Premium Dome Light Neutral White w 180 Bullets | | 10 | Sheathed Pigtail / 0.180" Bul |
| E28-LPS0-1 | 4.5" Surface Mounted Premium Dome Light, Neutral White, w/Switch | | 10 | Sheathed Pigtail |

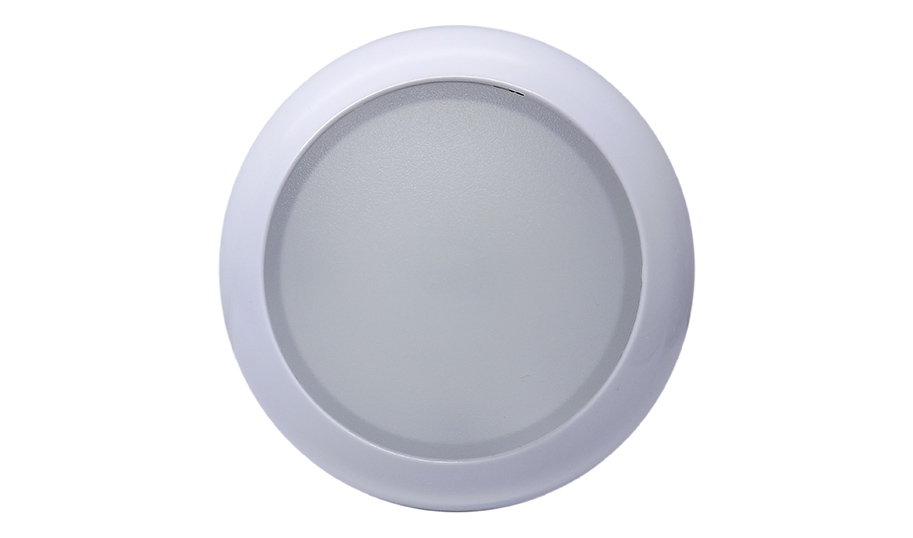

| E28-LPW00-1 | 4.5" Surface Mounted Premium Dome Light, Neutral White White Trim | | 10 | Sheathed Pigtail |
| E28-M000-1 | 4.5" Surface Mounted Dome Light, Warm White | | 10 | Sheathed Pigtail |
| E28-M0S0-1 | 4.5" Surface Mounted Dome Light, Warm White, w/Switch | | 10 | Sheathed Pigtail |
| E28-MP00-1 | 4.5" Surface Mounted Premium Dome Light, Warm White | | 10 | Sheathed Pigtail |
| E28-MPS0-1 | 4.5" Surface Mounted Premium Dome Light, Warm White, w/Switch | | 10 | Sheathed Pigtail |
| E28-W000-1 | 4.5" Surface Mounted Dome Light, Cool White | | 10 | Sheathed Pigtail |
| E28-W0S0-1 | 4.5" Surface Mounted Dome Light, Cool White, w/Switch | | 10 | Sheathed Pigtail |
| E28-WP00-1 | 4.5" Surface Mounted Premium Dome Light, Cool White | | 10 | Sheathed Pigtail |
| E28-WPS0-1 | 4.5" Surface Mounted Premium Dome Light, Cool White, w/Switch | | 10 | Sheathed Pigtail |
Documentation
| Document | Size |
 E28 Specification Sheet | 69 KB |
