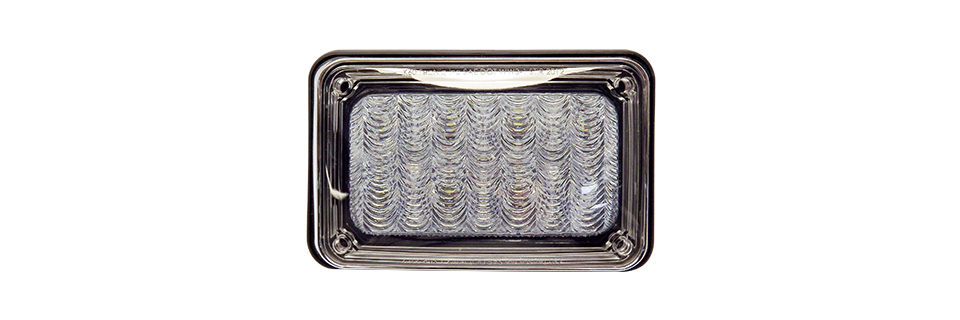

K60 : 6"x 4" LED Scene Light

  Features

  • Powerful 6”x 4” scene light fits standard mounting holes
  • TecSeal Urethane Potting - Guaranteed Circuit Board Protection
  • Durable impact resistant lens
  • Excellent UV Resistance - Automotive exterior lighting grade polycarbonate
  • IP68 Rated for long-term dust and water-intrusion proof
  • Meets all NFPA 1901 and Triple K specifications, including upcoming regulations
  • DOT stop/turn/tail reverse lamp compliance mode available on all lamps

  Specifications

Dimensions:
LEDs: 8
Voltage: 9 - 14V DC
Current: ≈1.10A – 1.30A
Lumens: 2500 Source Lumens
Wire: 9" pigtail
Mounting:   Surface mount using just (4) screws (included)
Wire Colors:
Red Wire12V DC Power
Black WireGround
Yellow WireLow Intensity(Night Mode)

  Part Numbers

Part NumberDescriptionLED – LensStdPackConnector

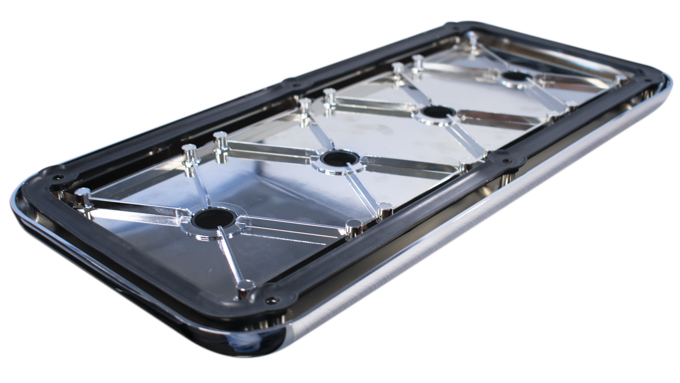

K60-1B00-1K60 Black Trim and Gasket Kit   1-
K60-1C00-1K60 Chrome Trim and Gasket Kit   1-

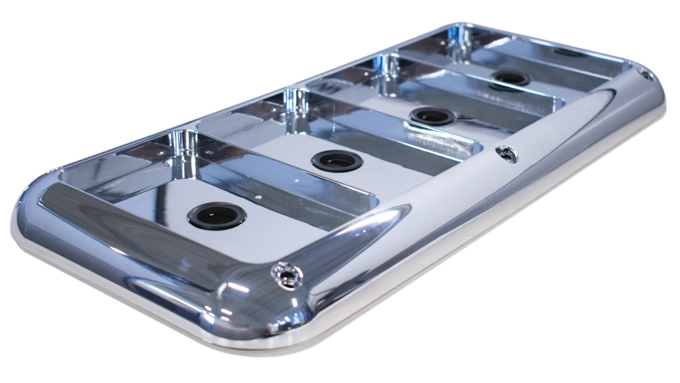

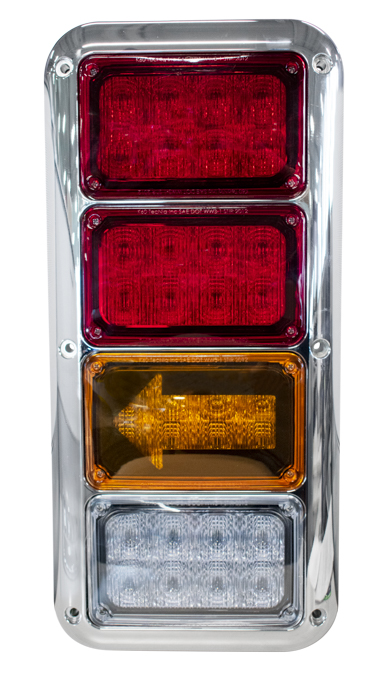

K60-0C40-1K60 Chrome Quad Bezel w/ Gasket & Grommets   1-
K60-SW00-1K60 High Output Scene Light   1Pigtail
