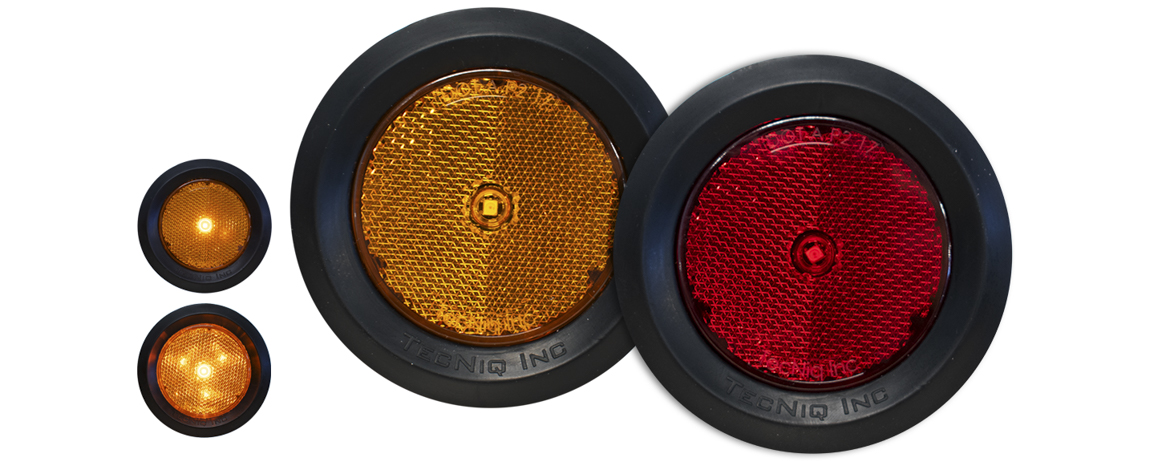

S12 : 2.5" low-profile P2 sidemarker w/reflector

  Features
  • TecSeal Urethane Potting - Guaranteed Circuit Board Protection
  • Excellent UV Resistance - Automotive exterior lighting grade polycarbonate
  • IP68 Rated - Dust and water proof with hermetic seal
  • Durable impact resistant lens
  • Exceeds FMVSS 108 standards
  • Reliable performance over 100,000 hours
  • Standard non-polarized connector
  • Energy efficient: Draws only 0.06A at 12VDC

  Specifications

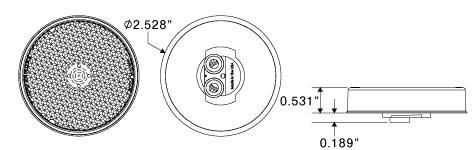

Dimensions:
  ∅2.5"x 0.72"
LEDs: 1 or 4 LED models
Voltage: 9 - 14V DC
Current: 0.05A-0.07A
Connector:

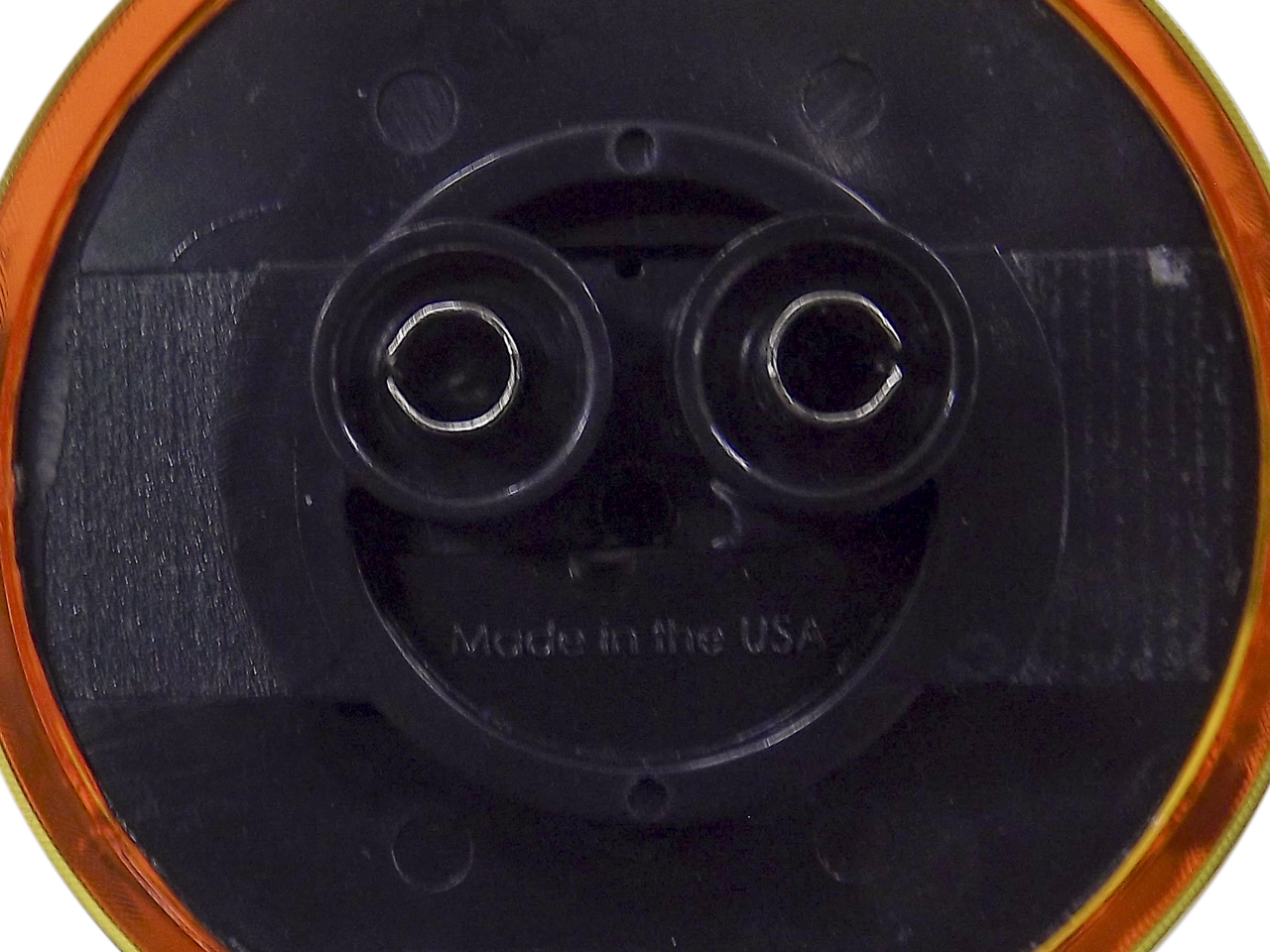

  PL2 -Non Polarized Connector

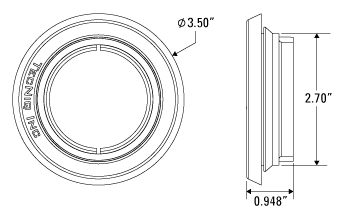

Mounting: Grommet-mounted into standard hole
LED Colors: Red • Amber
Light Output:

  Part Numbers
Part NumberDescriptionLED – LensStdPackConnector
S10-0G00-12.5" Round Sidemarker Grommet   150-
S12-AA00-12.5” Round Amber P2 rated Grommet Mount Sidemarker w/ Reflectivity   150Fem 2 Pole
S12-AA40-12.5” Round Amber P2 rated 4 LED Grommet Mount Sidemarker w/ Reflectivity   150Fem 2 Pole
S12-RR00-12.5” Round Red P2 rated Grommet Mount Sidemarker w/ Reflectivity   150Fem 2 Pole
S12-RR40-12.5” Round Red P2 rated 4 LED Grommet Mount Sidemarker w/ Reflectivity   150Fem 2 Pole

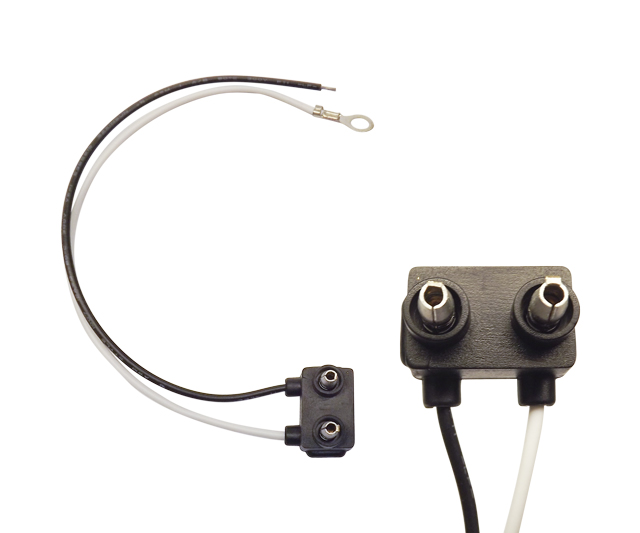

S99-0010-16" 2-Pole .156" Bullet with #6 GND Lug   -Male 2 Pole

  Documentation

DocumentSize
  Grommet50 KB
  Specification Sheet178 KB
