S51 : Heavy Duty Identification Bar
My Part List (0 items) $0.00
Features
- Fully submersible LED Identification bar
- New sleek design matches S18 side marker
- TecSeal Urethane Potting - Guaranteed Circuit Board Protection
- Durable impact resistant lens
- Available in colored or clear impact resistant lens
- IP68 rating while exceeding FMVSS 108 standards
- Reliable performance over 100,000 hours
Specifications
| Dimensions: | |
| LEDs: | 6 |
| Voltage: | 9 - 14V DC |
| Current: |
0.16A-0.20A Red/Amber |
| Connector: |
9" pigtail
|

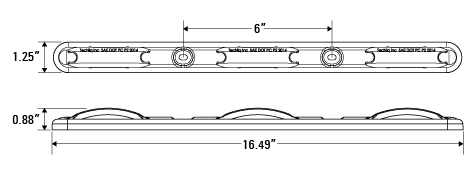

| Mounting: | Surface-mounted with 6" hole spacing |

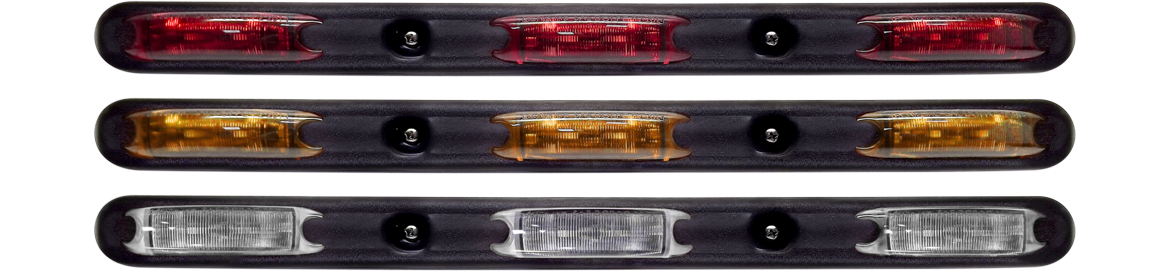

| LED Colors: | Red • Amber |
Part Numbers
| Part Number | Description | LED – Lens | StdPack | Connector |
| S51-AA00-1 | Tri-Bar Amber LED, Amber Lens, Black Body, Pigtail |   | 25 | Sheathed Pigtail |
| S51-AAG0-1 | Tri-Bar Amber LED, Amber Lens, Grey Body, Pigtail | | 25 | Sheathed Pigtail |
| S51-AC00-1 | Tri-Bar Amber LED, Clear Lens, Black Body, Pigtail |  | 25 | Sheathed Pigtail |
| S51-RC00-1 | Tri-Bar Red LED, Clear Lens, Black Body, Pigtail |  | 25 | Sheathed Pigtail |
| S51-RR00-1 | Tri-Bar Red LED, Red Lens, Black Body, Pigtail |  | 25 | Sheathed Pigtail |
| S51-RRG0-1 | Tri-Bar Red LED, Red Lens, Grey Body, Pigtail | | 25 | Sheathed Pigtail |
Documentation
| Document | Size |
 S51 Product Sheet | 415 KB |
| S51 Specification Sheet | 135 KB |
