T46 : 4" Strobe/Flasher

  Features

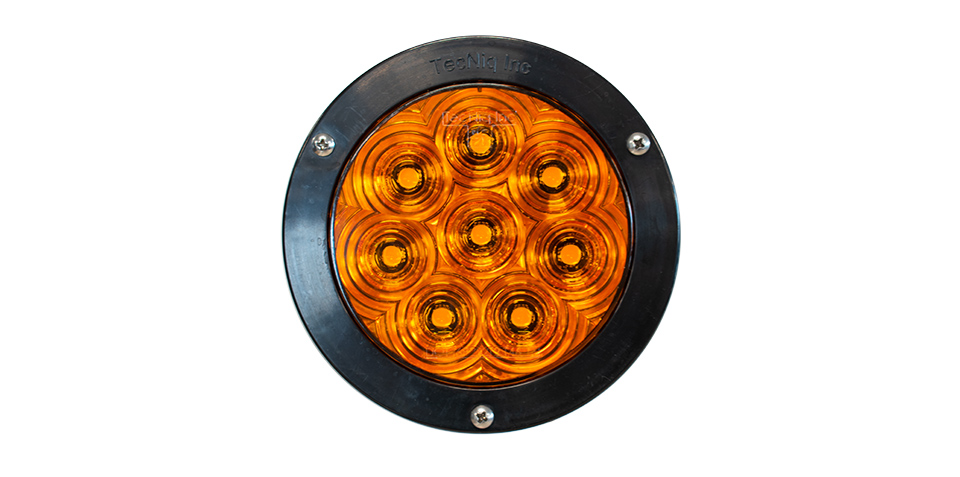

  • TecNiq'snew 4" round strobe light
  • Class 1 & Class 2 certified
  • Fits all industry standard 4" oval applications
  • Grommet or flange mount
  • TecSeal Urethane Potting - Guaranteed Circuit Board Protection
  • Excellent UV Resistance - Automotive exterior lighting grade polycarbonate
  • IP68 Rated - Dust and water proof with hermetic seal
  • Lifetime Warranty

  Specifications
Dimensions:

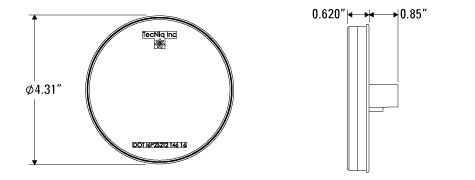

  Grommet Mount - ∅4.31"x 2.45"

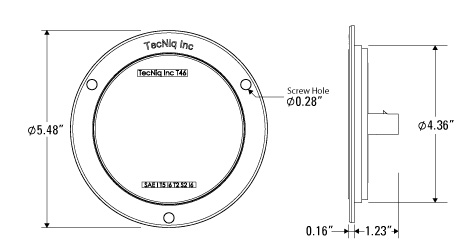

  Surface Mount - ∅5.48"x 1.39"
LEDs: 8
Voltage: 9 - 14V DC
Current: 0.223A - 0.277A (0.075 average) Amber
0.250A - 0.350A White
Connector:
  Amp Connector
  Tri-Pole Connector
  9" pigtail
Mounting: Fits standard mounting holes
LED Colors: Amber • White
Mounting Styles:
Wire Colors:
White Wire—Ground
Yellow Wire (Amber)
Black Wire (White LED)		—12V DC Power

  Part Numbers
Part NumberDescriptionLED – LensStdPackConnector
T40-0G00-14" Round Grommet   100-
T40-0G20-14" Round Grommet High Grip   100-

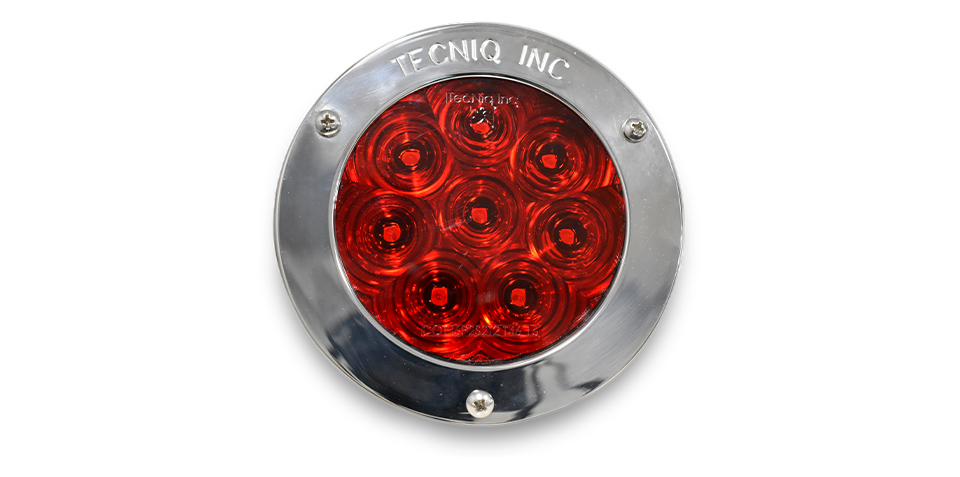

T40-0S00-14" Round Trim Ring SS   100-
T46-AAZ0A-1Hi Vis 4" Round Strobe Amber Amber Lens Grommet Amp   100Tri Pole
T46-AAZ0B-1Hi Vis 4" Round Strobe Amber Amber Lens Grommet Bullet   100Tri Pole
T46-AAZ0P-1Hi Vis 4" Round Strobe Amber Amber Lens Grommet Pigtail   100Tri Pole
T46-AAZ0T-1Hi Vis 4" Round Strobe Amber Amber Lens Grommet Tri-P   100Tri Pole
T46-ACZ0A-1Hi Vis 4" Round Strobe Amber Clear Lens Grommet Amp   100Tri Pole
T46-ACZ0B-1Hi Vis 4" Round Strobe Amber Clear Lens Grommet Bullet   1000.180" Bullets
T46-ACZ0P-1Hi Vis 4" Round Strobe Amber Clear Lens Grommet Pigtail   100Tri Pole
T46-ACZ0T-1Hi Vis 4" Round Strobe Amber Clear Lens Grommet Tri-P   100Tri Pole
T46-AAZFA-1Hi Vis 4" Round Strobe Amber Amber Lens Flange Amp   100Tri Pole
T46-AAZFB-1Hi Vis 4" Round Strobe Amber Amber Lens Flange Bullet   100Tri Pole
T46-AAZFP-1Hi Vis 4" Round Strobe Amber Amber Lens Flange Pigtail   100Tri Pole
T46-AAZFT-1Hi Vis 4" Round Strobe Amber Amber Lens Flange Tri-P   100Tri Pole
T46-ACZFA-1Hi Vis 4" Round Strobe Amber Clear Lens Flange Amp   100Amp
T46-ACZFB-1Hi Vis 4" Round Strobe Amber Clear Lens Flange Bullet   1000.180" Bullets
T46-ACZFP-1Hi Vis 4" Round Strobe Amber Clear Lens Flange Pigtail   100Pigtail
T46-ACZFT-1Hi Vis 4" Round Strobe Amber Clear Lens Flange Tri-P   100Tri Pole
T46-WC0P-1Hi Visibility 4" Round Reverse Clear Lens Grommet Mount Pig Tail   100Pigtail
T46-WC0T-1Hi Visibility 4" Round Reverse Clear Lens Grommet Mount Tri Pole   100Tri Pole
T46-WCFP-1Hi Visibility 4" Round Reverse Clear Lens Flange Mount Pig Tail   100Pigtail
T46-WCFT-1Hi Visibility 4" Round Reverse Clear Lens Flange Mount Tri Pole   100Tri Pole

  Documentation

DocumentSize
  Specification Sheet101 KB
