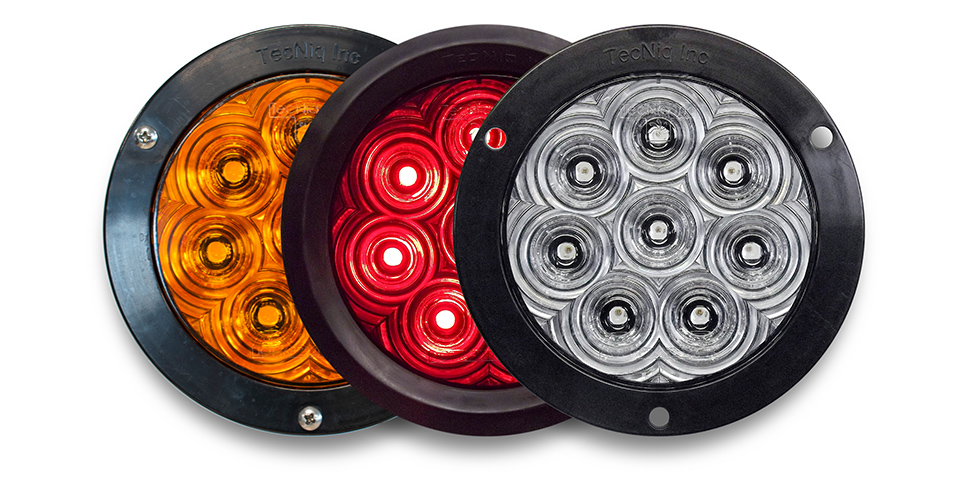

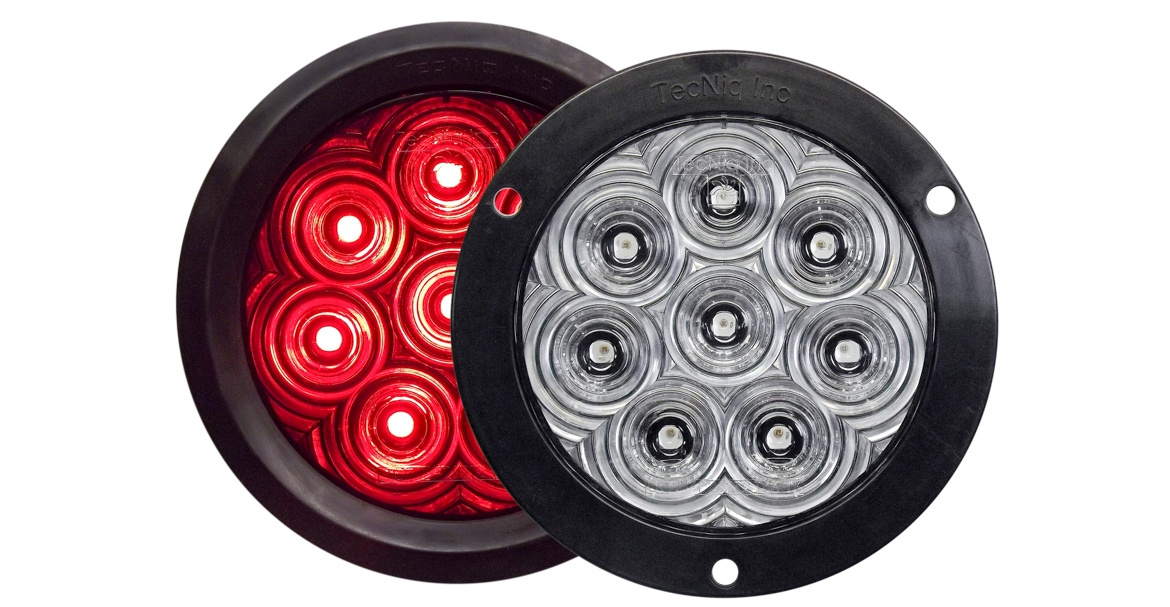

T46 : 4" Hi-Visibility Stop/Tail/Turn

  Features
  • Smooth surface, great looking Stop/Tail/Turn Light
  • Durable impact resistant lens
  • Fit all industry standard 4" round applications
  • Available in grommet or surface mount
  • TecSeal Urethane Potting - Guaranteed Circuit Board Protection
  • Excellent UV Resistance - Automotive exterior lighting grade polycarbonate
  • IP68 Rated - Dust and water proof with hermetic seal
  • Meets all FMVSS 108 requirements for wide and narrow vehicles
  • Reliable performance over 100,000 hours
  • Lifetime Warranty

  Specifications
Dimensions:
  Grommet Mount - ∅4.31"x 2.45"
  Surface Mount - ∅5.48"x 1.39"
LEDs: 8
Voltage: 9 - 14V DC
Current: 0.11A-0.15A Red
Connector:
  Amp Connector
  Tri-Pole Connector
  9" pigtail
Mounting: Fits standard mounting holes
LED Colors: Red • Amber
Mounting Styles:
Wire Colors:
White Wirered/amber stripe—Ground
Red Wire—Brake
Black Wire—Tail Light

  Part Numbers
Part NumberDescriptionLED – LensStdPackConnector
T40-0G00-14" Round Grommet   100-
T40-0G20-14" Round Grommet High Grip   100-
T40-0S00-14" Round Trim Ring SS   100-
T46-AA0A-1Hi Visibility 4"Round Amber Turn Amber Lens Amp Connector   100Amp
T46-AA0P-1Hi Visibility 4" Round Amber Turn Amber Lens Pig Tail   100Pigtail
T46-AA0T-1Hi Visibility 4" Round Amber Turn Amber Lens Tri Pole Connector   100Tri Pole
T46-AC0A-1Hi Visibility 4" Round Amber Turn Clear Lens Amp Connector   100Tri Pole
T46-AC0P-1Hi Visibility 4" Round Amber Turn Clear Lens Pig Tail   100Tri Pole
T46-AC0T-1Hi Visibility 4" Round Amber Turn Clear Lens Tri Pole Connector   100Tri Pole
T46-RC0A-1Hi Visibility 4" Round STT Clear Lens Grommet Mount Amp   100Tri Pole
T46-RC0T-1Hi Visibility 4" Round STT Clear Lens Grommet Mount Tri-Pole   100Tri Pole
T46-RCFA-1Hi Visibility 4" Round STT Clear Lens Flange Mount Amp   100Tri Pole
T46-RCFT-1Hi Visibility 4" Round STT Clear Lens Flange Mount Tri-Pole   100Tri Pole
T46-RR0A-1Hi Visibility 4" Round STT Red Lens Grommet Mount Amp   100Tri Pole
T46-RR0T-1Hi Visibility 4" Round STT Red Lens Grommet Mount Tri-Pole   100Tri Pole
T46-RRFA-1Hi Visibility 4" Round STT Red Lens Flange Mount Amp   100Tri Pole
T46-RRFT-1Hi Visibility 4" Round STT Red Lens Flange Mount Tri-Pole   100Tri Pole
T99-0010-112" 3-Pole .156" Bullet w/#6 GND Lug - Straight   -Tri Pole
T99-0020-112" 3-Pole .156" Bullet w/#6 GND Lug - 90 degree   -Tri Pole
T99-0040-1Amp - Pigtail Wire Adapter   -Amp
T99-0050-1Amp - Tri pole Adapter   -Amp - Tri Pole
T99-0060-13 Pole Style plug with 6" wires   -Tri Pole

  Documentation

DocumentSize
  Specification Sheet101 KB

TecNiq Inc. Contact Info

sales@tecniqinc.com
(269) 629-4440

9100 E Michigan
Galesburg, MI 49053

Monday - Friday
8:30am - 5:00pm EST
