S37 PC/P2 Rated Miniature Side Marker
S37 PC/P2 Rated Miniature Side Marker
Technical Features
- New mini ¾" grommet mount clearance markers, half the depth allowing for installation in very tight spaces.
- Easily mounts into standard 3/4" hole at any orientation
- Excellent UV Resistance - Automotive exterior lighting grade polycarbonate
- TecSeal Urethane Potting - Guaranteed Circuit Board Protection
- IP68 Rated - Dust and water proof
- Durable impact resistant lens
- 316 stainless steel trim ring available
- PC/P2 output exceeds FMVSS 108 specifications
- Reliable performance over 100,000 hours
- WIRE COLORS
White/Color – Ground, Black – Positive - Includes chemical resistant TPE grommet

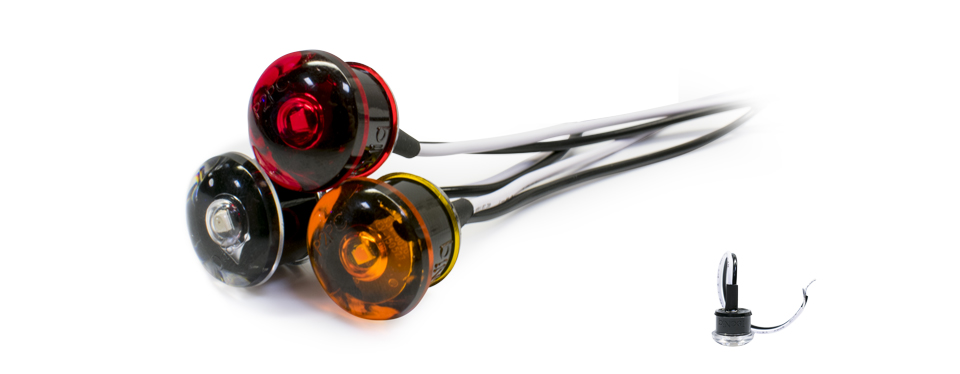

TecNiq's S37 is a great option for limited space. The S37 side marker grommet mount lights fit easily in 3/4" holes while taking up half the depth in comparison to similar lighting on the market. Available in varying colors and connectors to allow for personalization.

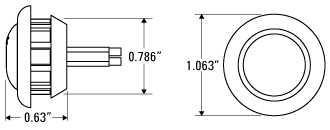

| Dimensions |
|
| LEDs | 1 |
| Voltage | 9-14VDC |
| Current |
0.07A-0.09A - Colored Lens 0.06A-0.08A - Red/Clear 0.03A-0.06A - Amber/Clear |
| Mounting | Grommet Mounts in 3/4" hole |
| LED Colors | Red • Amber |
| Angle |
|
| Wire Colors |
White/Color Wire - Ground Black Wire - 12VDC Power |
| Ground | White/Color |
| Name | Description | LED | Lens | STD Pack | Connector | |
|---|---|---|---|---|---|---|
| S33-0G00-1 |
S33 Grommet Black
|
100 | - | |||
| S33-0G1A-1 |
Gasket w/O-Ring Thick Material High Durometer
|
100 | - | |||
| S33-0S00-1 |
S33/S34 Stainless Steel Trim Ring
|
100 | - | |||
| S37-AA09-1 |
Amber 3/4 PC Sidemarker Amber Lens 5" Wire White GND
|
 |
 |
100 | Pigtail (5") | |
| S37-AA90-1 |
Amber 3/4 PC Sidemarker Amber Lens 9" Wire
|
|
|
100 | Pigtail (9") | |
| S37-AA9A-1 |
S37 Amber 3/4" PC SM Amber Lens W/.156 Bullet & 5" Wire
|
|
|
100 | 0.156" Bullets | |
| S37-AA9B-1 |
Amber 3/4 PC Sidemarker Amber Lens W/.180 Bullet & 5" Wire
|
|
|
100 | 0.180" Bullets | |
| S37-AA9E-1 |
AAmber 3/4 PC Sidemarker Amber Lens Black Positive Wire with .156" Bullets & 12" wire
|
|
|
100 | 0.156" Bullets | |
| S37-AA9H-1 |
Amber 3/4 PC Sidemarker Amber Lens 18" Wire W/Sheath
|
|
|
100 | Sheathed Pigtail (18") | |
| S37-AA9N-1 |
Amber 3/4 PC Sidemarker Amber Lens Black Positive Wire with .156" Barrels
|
|
|
100 | 0.156" Bullets | |
| S37-AA9U-1 |
Amber 3/4 PC Sidemarker Amber Lens Black Positive Wire .156 Barrel w/ Shroud & 12" Wire
|
|
|
100 | 0.156" Bullets (12") | |
| S37-AAS9V-1 |
Amber 3/4 PC Sidemarker Amber Lens W/8.5in Wire
|
|
|
100 | Sheathed Pigtail (9") | |
| S37-AC09-1 |
Amber 3/4 PC Sidemarker Clear Lens 5" Wire
|
|
 |
100 | Pigtail (5") | |
| S37-AC90-1 |
Amber 3/4 PC Sidemarker Clear Lens 9" Wire
|
|
|
100 | Pigtail (9") | |
| S37-AC9B-1 |
Amber 3/4 PC Sidemarker Clear Lens W/.180 Bullet Connector 5" Wire
|
|
|
100 | 0.180" Bullets (5") | |
| S37-AC9H-1 |
Amber 3/4 PC Sidemarker Clear Lens 18" Wire W/Sheath
|
|
|
100 | Sheathed Pigtail (18") | |
| S37-ACS9V-1 |
Amber Mini Grommet Mount PC Sidemarker Clear Lens w/9" Sheathed Wire
|
|
|
100 | Sheathed Pigtail (9") | |
| S37-BC09-1 |
Blue 3/4 PC Sidemarker Clear Lens 5" Wire
|
 |
|
100 | Pigtail (5") | |
| S37-RC09-1 |
Red 3/4 PC Sidemarker Clear Lens 5" Wire
|
 |
|
100 | Pigtail (5") | |
| S37-RC90-1 |
Red 3/4 PC Sidemarker Clear Lens 9" Wire
|
|
|
100 | Pigtail (9") | |
| S37-RC9B-1 |
Red 3/4 PC Sidemarker Clear Lens W/.180 Bullet Connector & 5" Wire
|
|
|
100 | 0.180" Bullets (5") | |
| S37-RC9H-1 |
Red 3/4 PC Sidemarker Clear Lens 18" Wire W/Sheath
|
|
|
100 | Pigtail (18") | |
| S37-RCS9V-1 |
Red Mini Grommet Mount PC Sidemarker Clear Lens w/9" Sheathed Wire
|
|
|
100 | Sheathed Pigtail (9") | |
| S37-RR09-1 |
Red 3/4 PC Sidemarker Red Lens 5" Wire White GND
|
|
 |
100 | Pigtail (5") | |
| S37-RR19G-1 |
Red 3/4 PC Sidemarker Red Lens 9in Wire w Ground Ring
|
|
|
100 | Pigtail (9") | |
| S37-RR90-1 |
Red 3/4 PC Sidemarker Red Lens 9" Wire
|
|
|
100 | Pigtail (9") | |
| S37-RR9A-1 |
S37 Red 3/4" PC SM Red Lens W/.156 Bullet & 5" Wire
|
|
|
100 | 0.156" Bullets | |
| S37-RR9B-1 |
Red 3/4 PC Sidemarker Red Lens W/.180 Bullet & 5" Wire
|
|
|
100 | 0.180" Bullets | |
| S37-RR9E-1 |
Red 3/4 PC Sidemarker Red Lens Black Positive Wire with .156" Bullets & 12" wire
|
|
|
100 | 0.156" Bullets | |
| S37-RR9H-1 |
Red 3/4 PC Sidemarker Red Lens 18" Wire W/Sheath
|
|
|
100 | Sheathed Pigtail (18") | |
| S37-RR9N-1 |
Red 3/4 PC Sidemarker Red Lens Black Positive Wire with .156" Barrel
|
|
|
100 | 0.156" Bullets | |
| S37-RR9U-1 |
Red 3/4 PC Sidemarker Red Lens Black Positive .156 Barrel w/ Shroud & 12" Wire
|
|
|
100 | 0.156" Bullets (12") | |
| S37-RRS9V-1 |
Red 3/4 PC Sidemarker Red Lens W/8.5in Wire
|
|
|
100 | Sheathed Pigtail (9") | |
| S37-WC09-1 |
White 3/4 PC Sidemarker Clear Lens 5" Wire White GND
|
 |
|
100 | Pigtail (5") | |
| S37-WC9A-1 |
**White 3/4 PC Sidemarker Clear Lens 18in w 2P Amp
|
|
|
|||
| S37-WC9H-1 |
White 3/4 PC Sidemarker Clear Lens 18" Wire W/Sheath
|
|
|
100 | Sheathed Pigtail (18") | |
| S37-WCS9V-1 |
White 3/4 PC Sidemarker Clear Lens 8.5in Sheathed Wire
|
|
|
Prop 65 Warning
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer, birth defects or other reproductive harm.
