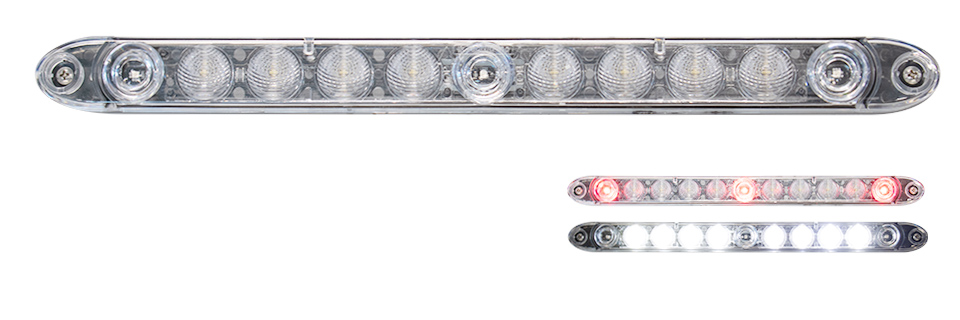

T14 Over 80" ID Bar/Load Lamp
T14 Over 80" ID Bar/Load Lamp
Technical Features
- High output load light - 500 lumens
- Includes the over 80" ID bar lights
- Available in clear lens only
- IP68 Rated
- Perfect for RV Toy Haulers, Utility Trailers, and Work Trucks
- Light must be mounted in proper orientation - See molded in marking on lens
- Surface mount installation
- WIRE COLORS
White – Ground, Black – Load Lamp, Red – Tail
This quality waterproof Over 80" ID Bar/Load Lamp is perfect for RV Toy Haulers, Utility Trailers, and Work Trucks alike. IP68 rated, and sonically welded for a lifetime of care free service. The quality and value of this lamp is unsurpassed in the industry.
| Dimensions |
|
| LEDs | 11 |
| Lumens | 500 |
| Voltage | 9-14VDC |
| Current |
0.04A-0.07A - Red 0.325A-0.395A - Red/White Combo |
| Connectors | 9" wire |
| Mounting | Surface mount using 2 screws (screw covers included) |
| LED Colors | Red/White combo |
| Wire Colors |
White Wire - Ground Black Wire - Load Red Wire - Tail |
| Ground | White |
| Name | Description | LED | Lens | STD Pack | Connector | |
|---|---|---|---|---|---|---|
| T10-0B00-1 |
T10 Black Trim Ring
|
100 | - | |||
| T10-0C00-1 |
T10 Chrome Trim Ring
|
100 | - | |||
| T10-0G00-1 |
T10 Neoprene gasket
|
100 | - | |||
| T14-RW00-1 |
Identification and Load Lamp Combo
|
 |
 |
100 | Pigtail | |
| T14-RWT0-1 |

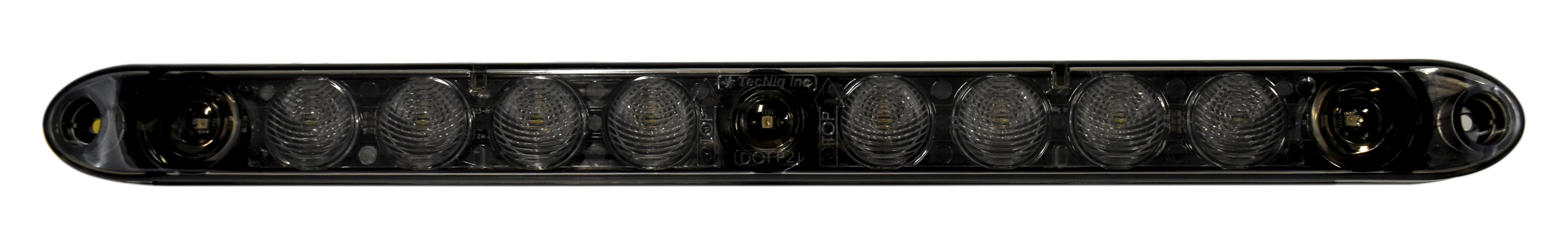

Identification and Load Lamp Combo Tinted Lens
|
|
|
100 | Pigtail | |
| T14-RWTB-1 |
Identification and Load Lamp Combo Tinted Lens w 180 Bullets
|
|
|
Prop 65 Warning
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer, birth defects or other reproductive harm.
