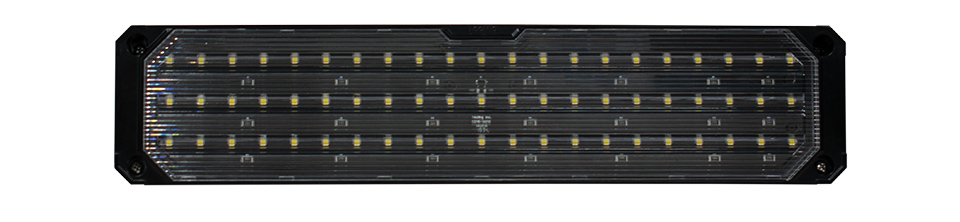

D16 High Output Race/Task Light
D16 High Output Race/Task Light
Technical Features
- TecSeal Urethane Potting guarantees circuit board protection
- Available in Surface Mount
- Reliable performance for over 100,000 hours
- Meets IP68 Rating for Dust and Waterproof
- Provides 4400 Lumens of light for inside or outside of your trailer
- Great "Race Light" for working on vehicles, atv's, etc.. inside the trailer
- WIRE COLORS
White – Ground, Black – Positive
The D16 High Output Race/Task Light is an all new light focused on giving 4400 Lumens of bright light to work by. This light features TecSeal potting for guaranteed circuit board protection. The D16 features 63 total LED diodes, with two model choices projecting light either straight forward, or at a 45° angle. The D16 is a surface mounted light, and IP68 rated against dust and water incursion.

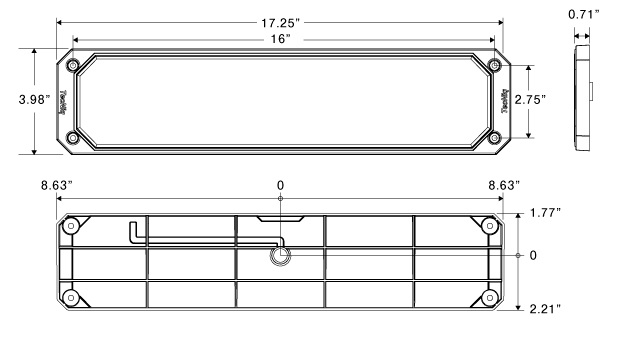

| Dimensions |
|
| LEDs | 63 |
| Lumens | 4400 |
| Voltage | 9-14VDC |
| Current | 2.55A-3.45A |
| Connectors | 9" |
| Mounting | Surface Mounted, vertically or horizontally |
| LED Colors | White |
| Angle |
|
| Wire Colors |
White - Ground Black -Positive |
| Ground | White |
| Name | Description | LED | Lens | STD Pack | Connector | |
|---|---|---|---|---|---|---|
| D16-WB00-1 | 16in High Powered Area Light |
 |
 |
24 |
|
|
| D16-WBF0-1 | D16 Flat Light Black Base |
|
|
24 |
|
|
| D16-WG00-1 | 16in High Powered Area Light Gray Base |
|
|
24 |
|
|
| D16-WW00-1 | 16in High Powered Area Light White Base |
|
|
24 |
|
|
| D16-WWF0-1 | D16 Flat Light White Base |
|
|
24 |
|
