TecNiq | D07

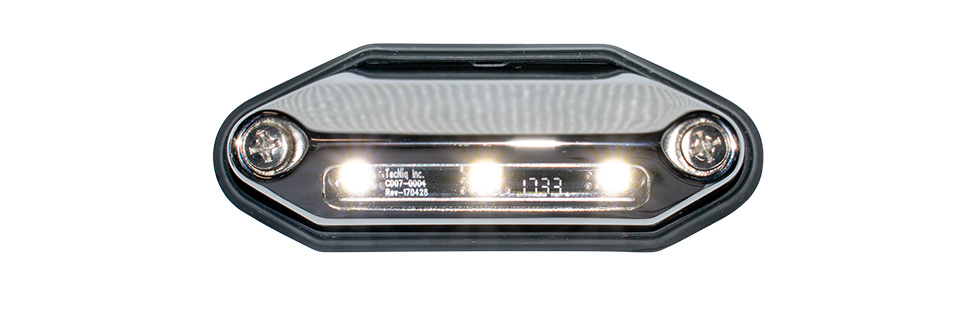

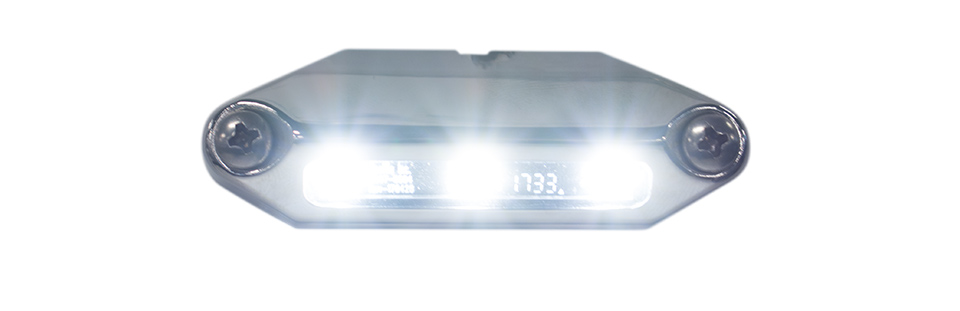

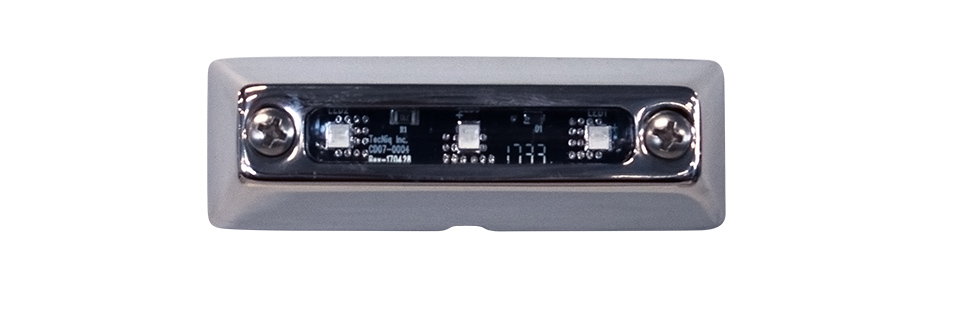

D07 : Linear Area/Accent Lights

* Some part numbers for this product ship without mounting hardware. Please be sure to add mounting hardware to the PO, if needed.

Available with three different mounting covers - Horizontal, Vertical, and 45°
High clarity lens design emits a light projection range of 180° wide
Perfect for accent, steps, walkways
IP68 rated - Water and dust proof

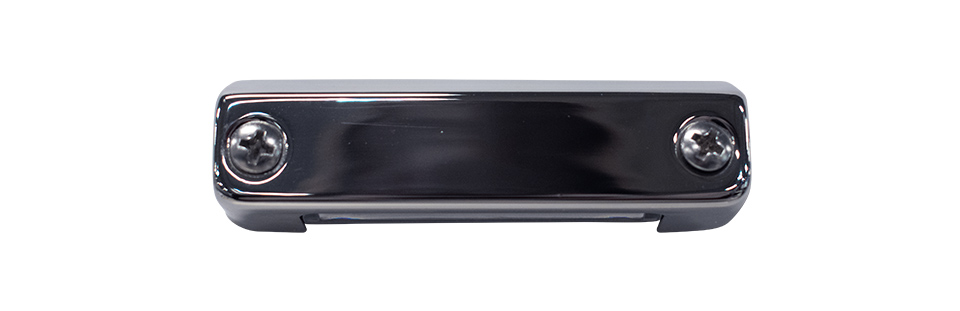

Corrosion resistant 316 Stainless Steel covers
Surface mount installation with two fasteners
White LED model provides 240 lumens

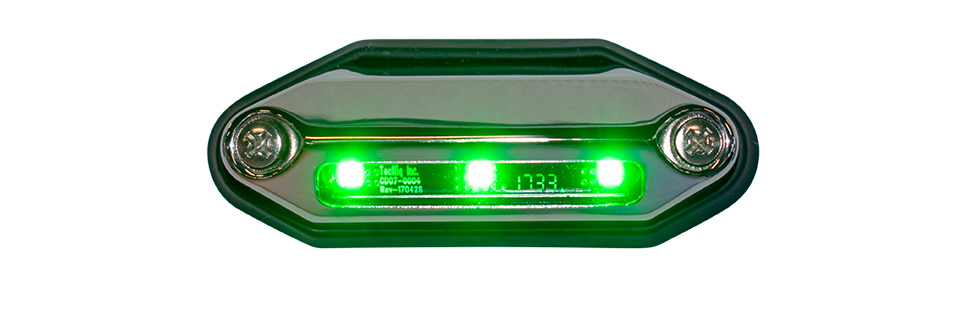

Available in color changing RGB option
WIRE COLORS
Black – Ground, Colored (LED Color) – Positive

Related Products

Add to PO

Accent Light Black 45 Degree Case

Add to PO

Accent Light Black Horizontal Case

Add to PO

Accent Light Black Vertical Case

Add to PO

D07 Gasket

Add to PO

D07 Stainless Cover 45 Degree

Add to PO

D07 Stainless Cover Horizontal

Add to PO

D07 Stainless Cover Vertical

Add to PO

Accent Light White 45 Degree Case

Add to PO

Accent Light White Horizontal Case

Add to PO

Accent Light White Vertical Case

Linear Area/Accent Lights

45° Accent/Step Light

Linear Dragon Lights

Miniature Accent Light

Grommet Mount Step Accent Light

Motion Detection Sensor

Product Description

TecNiq's D07 linear area or accent lights are sleek LEDs offering up to 120 lumens of light. Available with either horizontal, vertical, or 45° mounting covers, these lights can provide great illumination to small or high traff areas.

Downloads

Document	Size
D03-D07 Product Sheet	490 KB

Product Specifications

Dimensions:

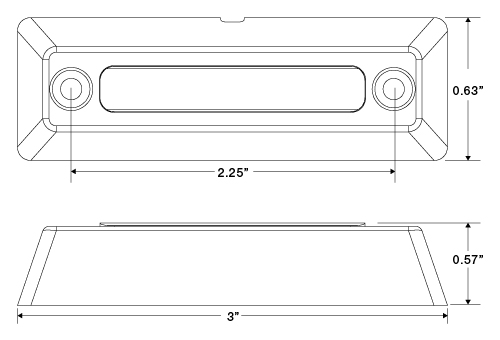

Vertical Case: 3.00"x 0.57"x 0.63"

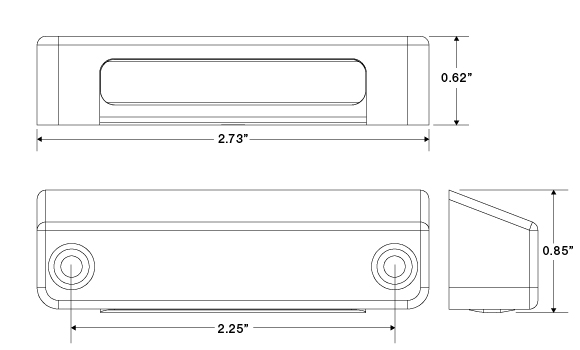

Horizontal Case: 2.73"x 0.62"x 0.85"

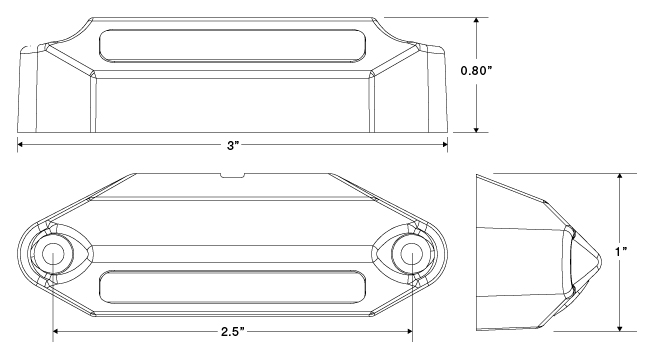

45° Case: 3.00"x 0.80" 1.00"

LEDs:

Lumens:

240

Voltage:

9 - 14V DC

Current:

0.12A-0.14A colors
0.15A-0.19A white

Wire:

Mounting:

Mounts using (2) #6 oval head screws

LED Colors:

Red • Amber • Green • Blue • White

Mounting styles

Wire Colors:

Black	—	Ground
Colored (LED Color)	—	Positive

Part Numbers

Part Number	Description	LED – Lens	StdPack	Connector
D07-0B45-1	Accent Light Black 45 Degree Case		50	-
D07-0BH0-1	Accent Light Black Horizontal Case		50	-
D07-0BV0-1	Accent Light Black Vertical Case		50	-
D07-0G00-1	D07 Gasket		50	-
D07-0S45-1	D07 Stainless Cover 45 Degree		50	-
D07-0SH0-1	D07 Stainless Cover Horizontal		50	-
D07-0SV0-1	D07 Stainless Cover Vertical		50	-
D07-0W45-1	Accent Light White 45 Degree Case		50	-
D07-0WH0-1	Accent Light White Horizontal Case		50	-
D07-0WV0-1	Accent Light White Vertical Case		50	-
D07-3000-1	Mini Lamp Body RGB		50	Pigtail (7")
D07-300F-1	Mini Lamp Body RGB with Deutsch		50	Deutsch (7")
D07-3450-1	Mini Lamp Body 45 RGB		50	Pigtail (7")
D07-A000-1	Mini Lamp Body Amber		50	Pigtail (7")
D07-A450-1	Mini Lamp Body 45 Degree Amber		50	Pigtail (7")
D07-B000-1	Mini Lamp Body Blue		50	Pigtail (7")
D07-B450-1	Mini Lamp Body 45 Degree Blue		50	Pigtail (7")
D07-G000-1	Mini Lamp Body Green		50	Pigtail (7")
D07-G450-1	Mini Lamp Body 45 Degree Green		50	Pigtail (7")
D07-R000-1	Mini Lamp Body Red		50	Pigtail (7")
D07-R450-1	Mini Lamp Body 45 Degree Red		50	Pigtail (7")
D07-U000-1	Mini Lamp Body Ultraviolet		50	Pigtail (7")
D07-W000-1	Mini Lamp Body White		50	Pigtail (7")
D07-W450-1	Mini Lamp Body 45 Degree White		50	Pigtail (7")
