E41 : Flexible Lighting Strips

  • Produces 150 lumens per 4.5" section (white)
  • Ultra thin 3/16" strips surface mounts easily in tight spaces
  • High flexibility conforms to irregular surfaces
  • Easily installed with 3M adhesive tape backing or optional mounting channel (72")
  • Reliable performance over 50,000 hours
Dust and Waterproof. IP68 Rated.
Meets all FMVSS 108 requirements.
Reliable over 50,000 hours.

Related Products


  Product Description

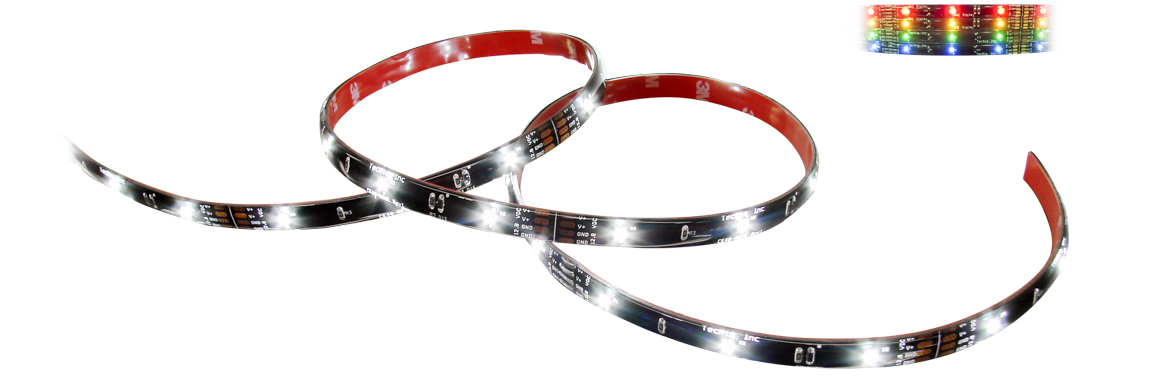

TecNiq's E41 Flexible Lighting, the options are endless. This ultra thin lighting easily mounts in tight spaces, on irregular surfaces and can be ordered in a variety of colors, lengths and terminations. A great way to adorn any vehicle, trailer, boat, or RV.

E41 Flexible Lighting comes standard with 3M tape for ease of installation. If you prefer not to use adhesion for attachment, add Mounting Channel 72". The E41 snaps into place in the cut-to-length channeling. Mounting Channel 72" is offered in packs of 25 and does not include mounting hardware.

  Product Specifications

Dimensions:
LEDs: 3 / section
Lumens: 150 / section (white)
Voltage: 9 - 14V DC
Current: 0.41A-0.50A / 6ft blue/green
0.58A-0.70A / 6ft red/amber
0.75A-0.91A / 6ft white
Wire: Made to order
Mounting: Mounts with secure 3M tape or mounting channel 72" (hardware not included)
LED Colors: White • Blue • Green • Red • Amber • Color Changing RGB
Angle:

  Part Numbers

Part NumberDescriptionLED – LensStdPackConnector
E41-000V-12 wire termination   --
E41-A010-1Flexible LED Light Amber 4.5" - No Wire   --

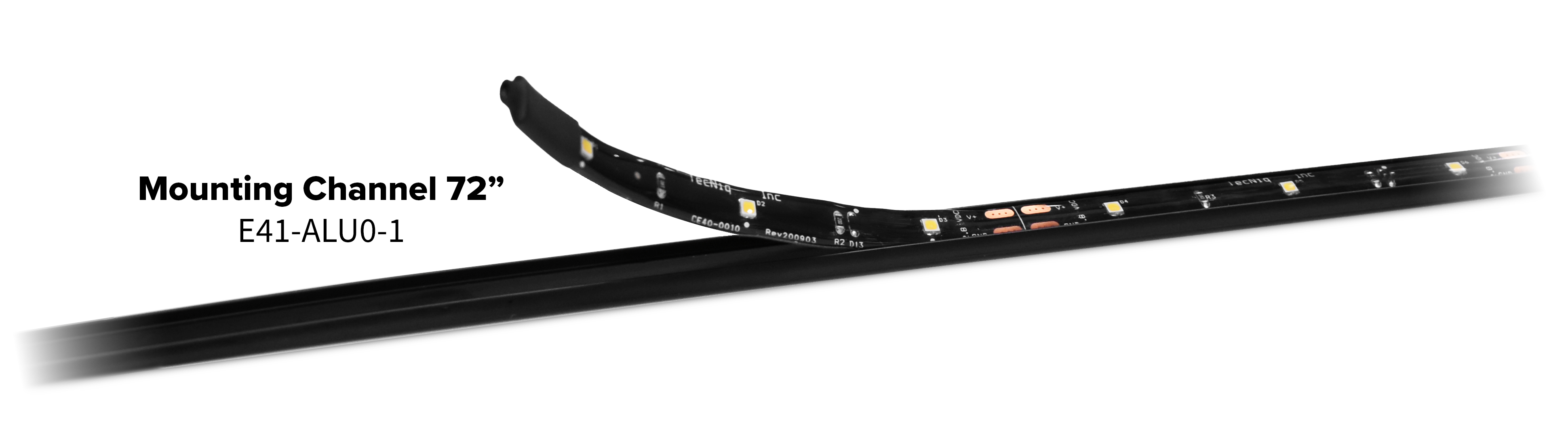

E41-ALU0-1Mounting Channel 72"   250
E41-B010-1Flexible LED Light Blue 4.5" - No Wire   --
E41-G010-1Flexible LED Light Green 4.5" - No Wire   --
E41-R010-1Flexible LED Light Red 4.5" - No Wire   --
E41-W010-1Flexible LED Light White 4.5" - No Wire   --
