TecNiq | E51

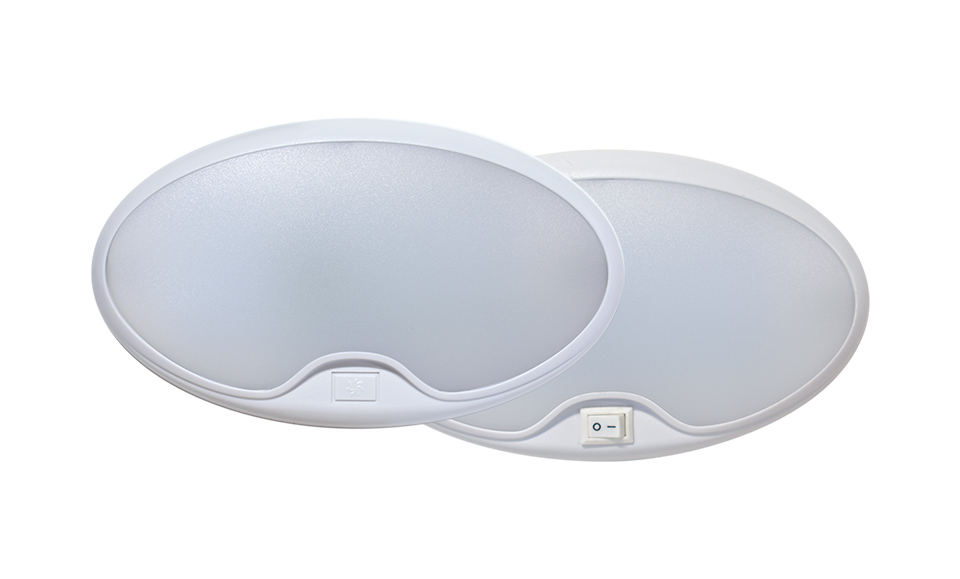

E51 : Oval Surface Mount Dome Light

Lamp features twelve high efficiency LEDs
Sleek and stylish surface mount design
Available with or without integrated ON/OFF switch

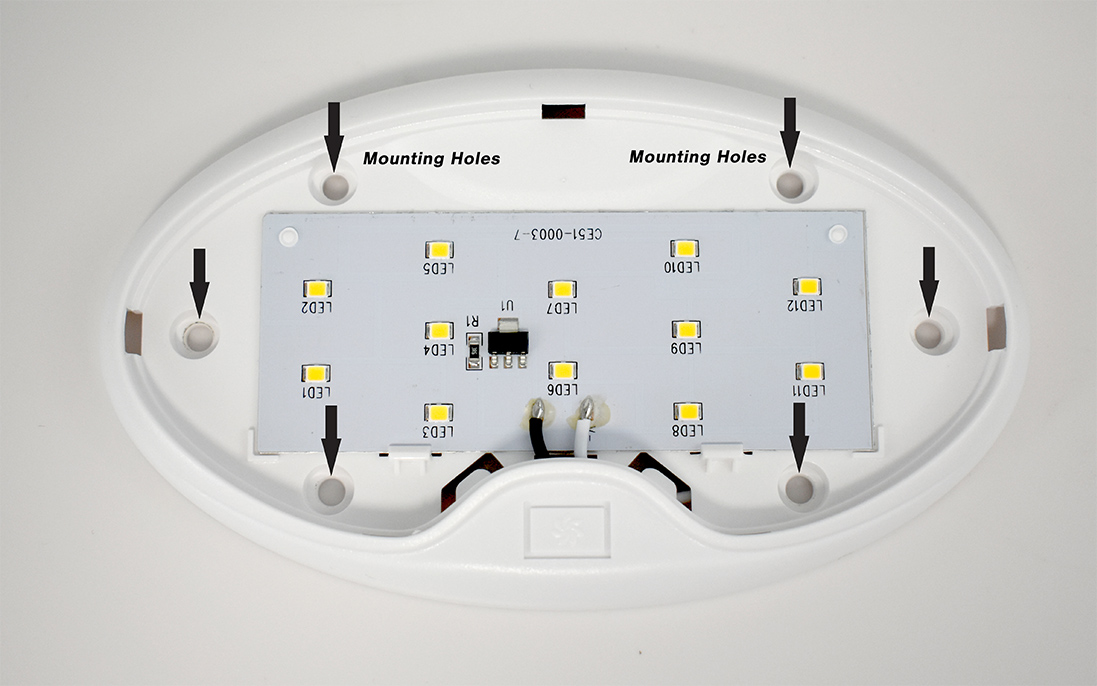

Two mounting hole patterns, hidden behind lens
Reliable performance over 50,000 hours

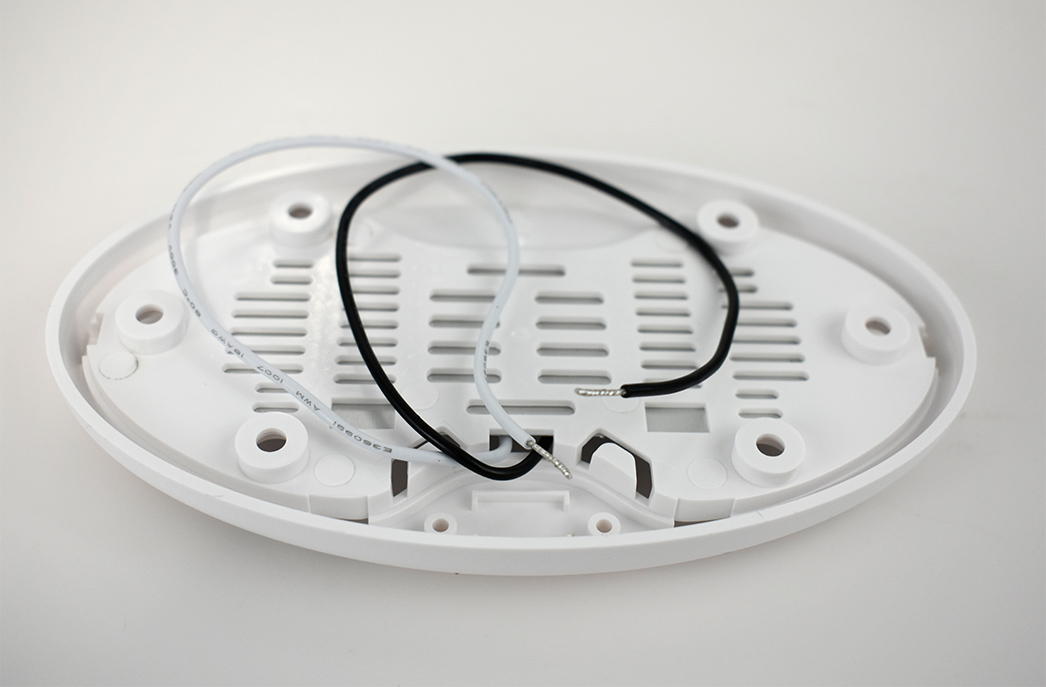

WIRE COLORS
White – Ground, Black – Positive

Related Products

Round Surface Mount Dome Light

Spring Mount Dome Light - 3"

Spring Mount Dome Light - 4.5"

Surface Mount Dome Light - 3"

Surface Mount Dome Light - 4.5"

Motion Detection Sensor

Product Description

Our LED accent and area lighting products incorporate the industry's top-performing LEDs and materials, and the highestefficiency optical designs. At 4.5", the E51 LED dome light features 12 high efficiency LEDs, putting out 300 lumens.

Downloads

Document	Size
E51 Product Sheet	410 KB
E51 Specification Sheet	72 KB

Product Specifications

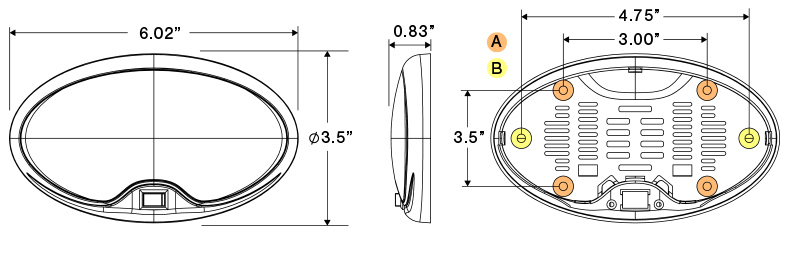

Dimensions:

6"x 3.5"x 0.83"

LEDs:

Lumens:

300

Voltage:

9 - 14 VDC

Current:

0.32A - 0.44A

Wire:

Mounting:

Surface mounted

LED Colors:

White

Wire Colors:

White	—	Ground
Black	—	Positive

Part Numbers

Part Number	Description	LED – Lens	StdPack	Connector
E51-LC00-1	4.5" Round Interior Lamp 12 LED No Switch Neutral LED		20	Pigtail (8")
E51-LCS0-1	4.5" Round Interior Lamp 12 LED With Switch Neutral LED		20	Pigtail (8")
E51-MC00-1	6" x 3.5" Oval Interior Lamp 12 LED No Switch		20	Pigtail (8")
E51-MCS0-1	6" x 3.5" Oval Interior Lamp 12 LED With Switch		20	Pigtail (8")
E51-WC00-1	6" x 3.5" Oval Interior Lamp 12 LED No Switch Cool LED		20	Pigtail (8")
E51-WCS0-1	6" x 3.5" Oval Interior Lamp 12 LED With Switch Cool LED		20	Pigtail (8")
