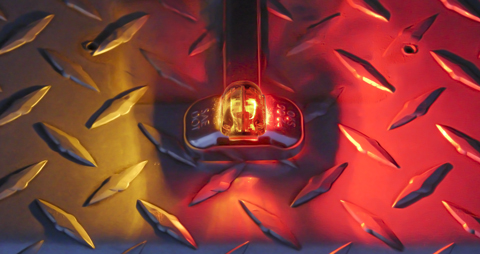

S90 : Heavy Duty Miniature Bi-Color Fender Light

  • Completely submersible bi-color red/amber LED fender light
  • Low profile design
  • TecSeal Urethane Potting - Guaranteed Circuit Board Protection
  • Excellent UV Resistance - Automotive exterior lighting grade polycarbonate
  • IP68 Rated - Dust and water proof
  • Durable impact resistant lens
  • Reliable performance over 100,000 hours
  • DOT Rated
  • WIRE COLORS
    White –
    Ground, Red – Positive, Black – Low (dual intensity)
Dust and Waterproof. IP68 Rated.
Meets all FMVSS 108 requirements.
Reliable over 50,000 hours.

Related Products


  Product Description

The model S90 combines an amber and red LED to meet the ‘furthest extent' clearance requirement of trailers. The brilliant output of these lamps will assure your customers that there is no mistaking the quality and safety of your designs. Considering its features and quality, it makes the market-leading low price all the more impressive.

  Product Specifications

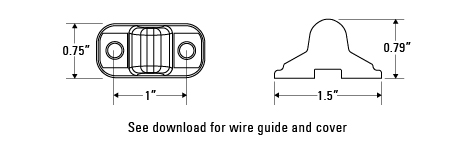

Dimensions:
LEDs: 2
Voltage: 9 - 14V DC
Current: 0.04A-0.07A
Connector:
9" pigtail
LED Colors: Red/Amber
Mounting: Surface-mounted with 1" hole spacing
Wire Colors:
  Standard Model
White WireGround
Red Wire12VDC Power

  Dual Intensity Model
White WireGround
Red WireHigh Intensity
Black WireLow Intensity

Light Output:

  Part Numbers

Part NumberDescriptionLED – LensStdPackConnector

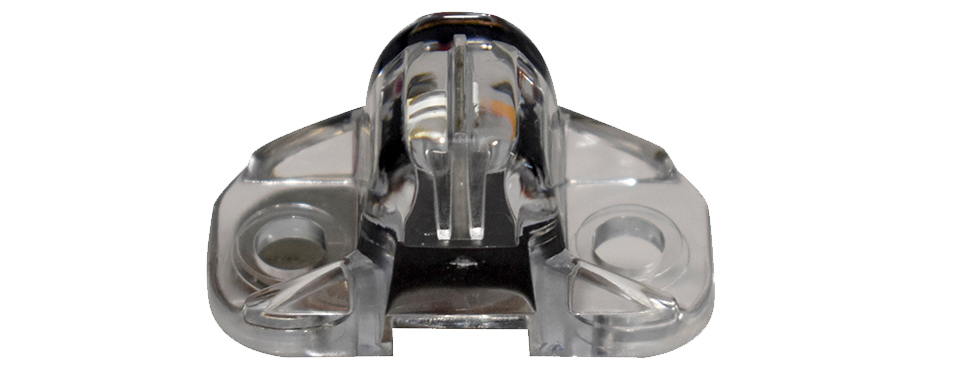

S90-0000-1Fender Sidemarker Light
*Light only
   150Pigtail (9")
S90-000M-1Fender Sidemarker Light W/.156 Bullet
*Light only
   1500.156" Bullet
S90-0010-1Fender Sidemarker Light 20" Wire
*Light only
   150Pigtail (20")
S90-002B-1Fender Sidemarker Light 20" Wire w/ 1/4" Ring & .180 Bullet
*Light only
   1500.180" Bullet / Ground Ring
S90-00D0-1S90 Dual Intensity Fender SM Light
*Light only
   150Pigtail (9")
S90-00G0-1Fender Sidemarker Light Self Grounding
*Light only
   150Pigtail (9") / Ground Ring

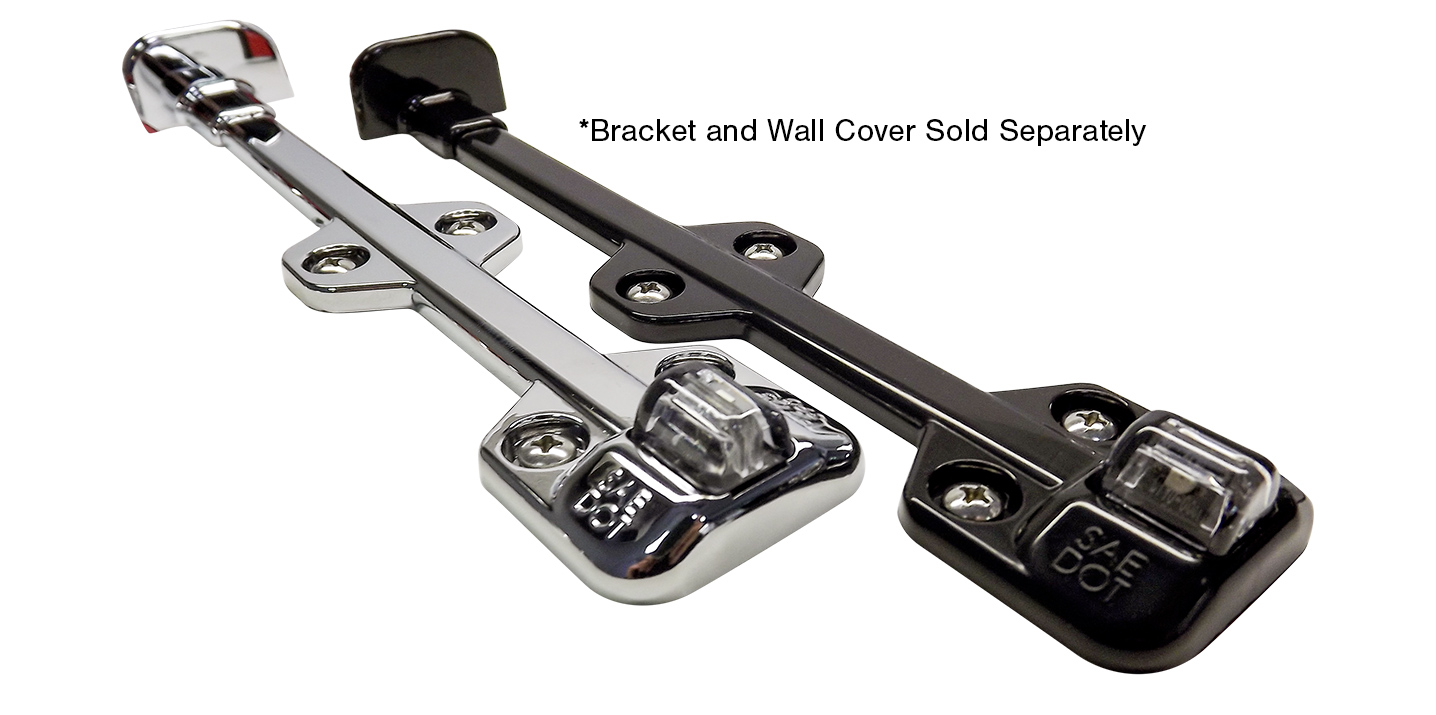

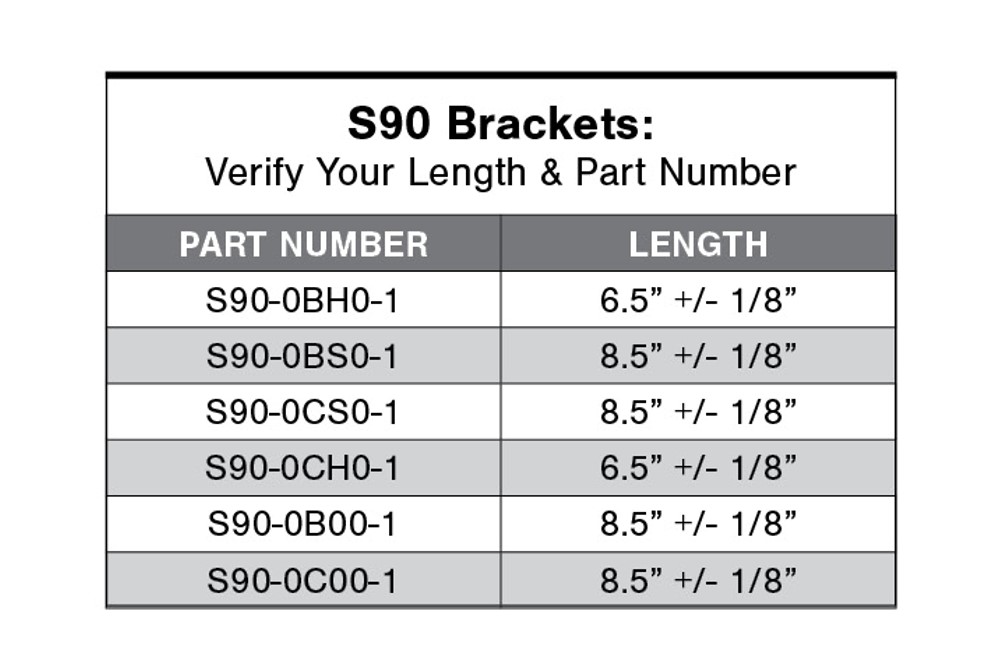

S90-0B00-1Fender Sidemarker Light Wire Guide Black 2 Screw
*Wire guide only
   1508.5" Wire Guide (+/- 0.125")
S90-0B05-1Fender Sidemarker Light Wire Guide Black - 5" Length
*Wire guide only
   150-
S90-0B20-1S90 Wall Cover Black
*Wall cover only
   150-

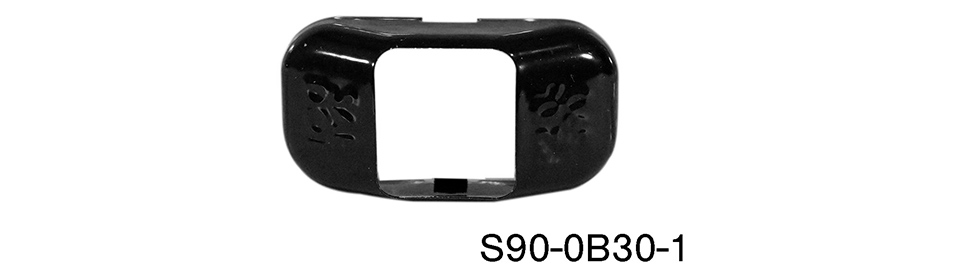

S90-0B30-1Fender Sidemarker Light SS Stamping W/Black Powder Coat
*Cover only
   150-
S90-0BS0-1Fender Sidemarker Light Wire Guide Black 4 Screw Full length
*Wire guide only
   1508.5" Wire Guide (+/- 0.125")

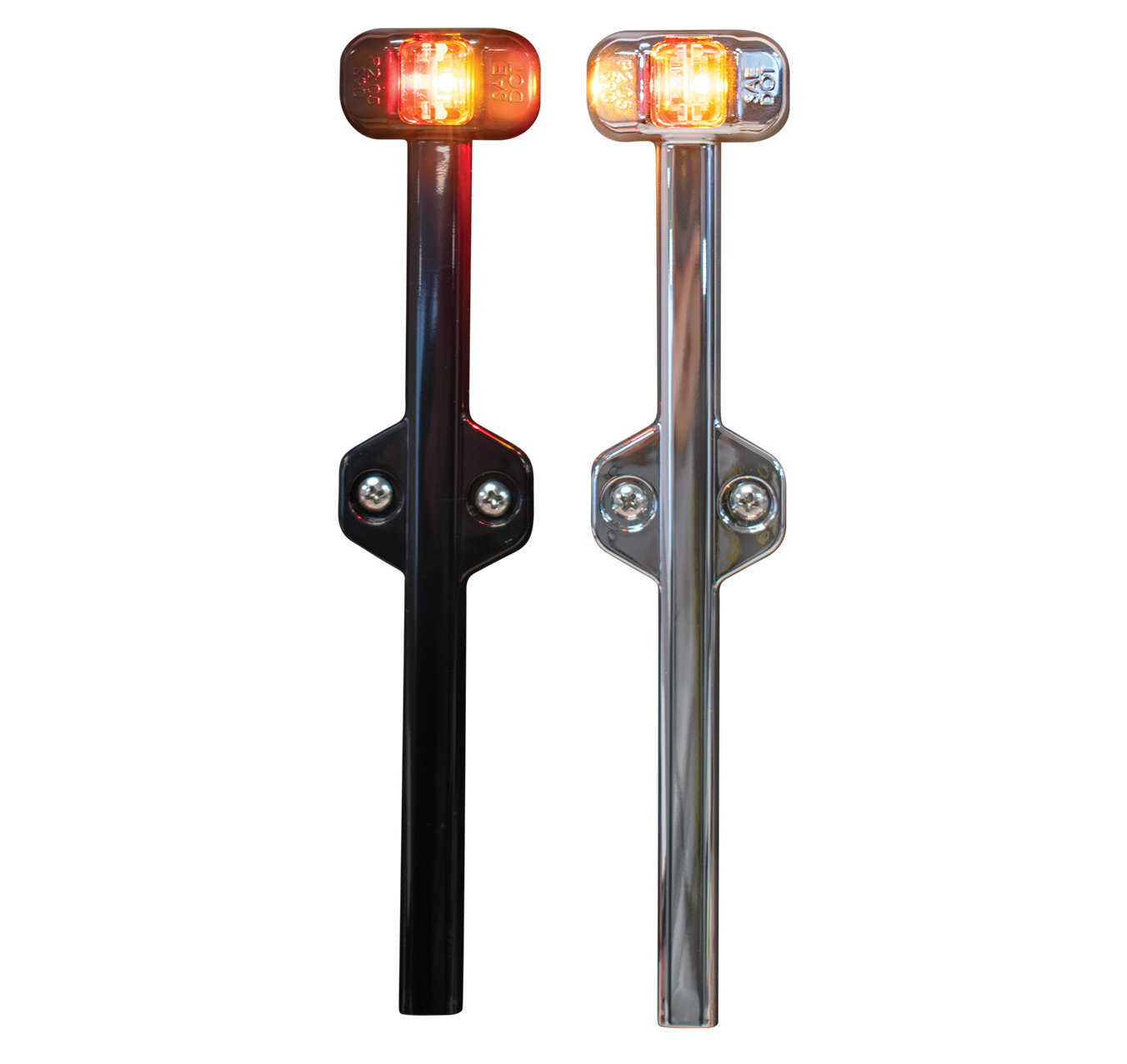

S90-0C00-1Fender Sidemarker Light Wire Guide Chrome 2 Screw
*Wire guide only
   1508.5" Wire Guide (+/- 0.125")
S90-0C20-1Fender Sidemarker Wall Cover Chrome
*Wall cover only
   150-
S90-0CH0-1Fender Sidemarker Light Wire Guide Chrome 6.5" Length 4 Screw
*Wire guide only
   1506.5" Wire Guide (+/- 0.125")
S90-0CS0-1Fender Sidemarker Light Wire Gu Chrome 4 Screw Full Length
*Wire guide only
   1508.5" Wire Guide (+/- 0.125")
S90-0SS0-1Fender Sidemarker Light SS Stamping
*Cover only
   150-
