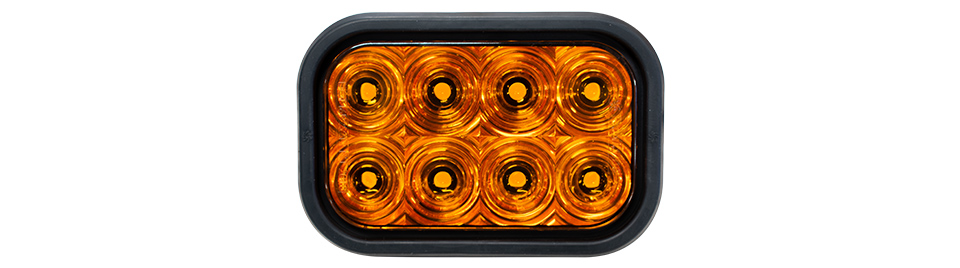

T71 : 4" Rectangular LED Strobe/Flasher

My Part List (0 items) $0.00

Related Products


  Features

  • Class 1 & Class 2 certified
  • Smooth surface, great looking Stop/Tail/Turn Light
  • Durable impact resistant lens
  • Grommet mount
  • Can be mounted horizontal, vertical, or at any angle
  • TecSeal Urethane Potting - Guaranteed Circuit Board Protection
  • Excellent UV Resistance - Automotive exterior lighting grade polycarbonate
  • IP68 Rated - Dust and water proof with hermetic seal
  • Meets all FMVSS 108 standards for wide and narrow vehicles
  • Reliable performance over 100,000 hours

  Specifications

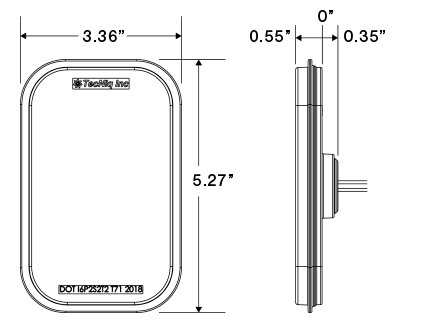

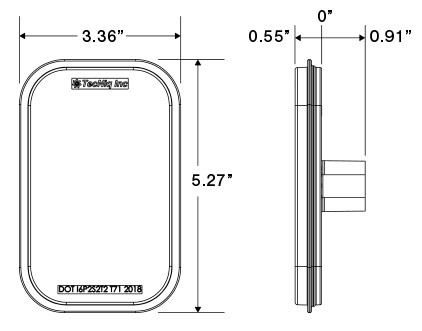

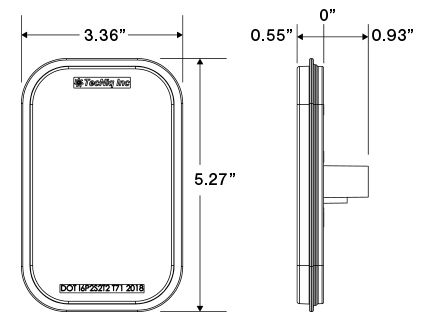

Dimensions:
LEDs: 8
Voltage: 9 - 14V DC
Current: 0.26A-0.34A Amber
Connector:
Mounting: Fits standard mounting holes
LED Colors: Amber
Wire Colors:
Red WireStrobe Function
Black WireGround
White WirePattern Change
Whiteyellow stripeWig-WagConnect to power for opposite phase

  Part Numbers

Part NumberDescriptionLED – LensStdPackConnector
T71-0G00-1T71 grommet   --
T71-AAZA-1Rectangular 8 LED Amber Strobe Horiz. Grommet Mt Amber Lens Amp Connector   24Amp
T71-AAZP-1Rectangular 8 LED Amber Strobe Horiz. Grommet Mnt Amber Lens Pigtail   24Pigtail
T71-AAZT-1Rectangular 8 LED Amber Strobe Horiz. Grommet Mnt Amber Lens 3 Pole   24Tri Pole
