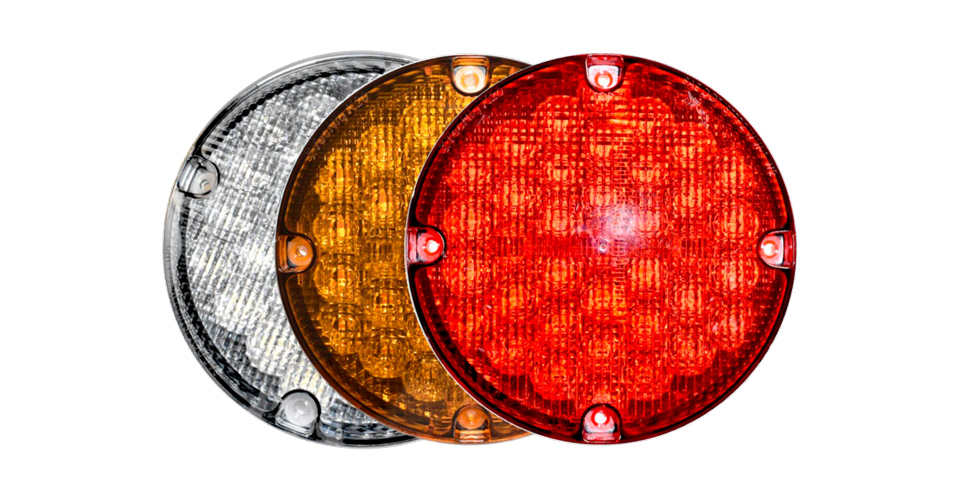

K20 : High Visibility Stop/Tail/Turn

* Some part numbers for this product ship without mounting hardware. Please be sure to add mounting hardware to the PO, if needed.

Related Products


  Features

  • Fits all standard 7" round applications
  • Available in surface mount
  • Lifetime Warranty
  • IP68 rating while exceeding FMVSS 108 standards
  • The only, completely sealed 7" Round Bus Light on the market. No more fishbowl!
  • WIRE COLORS
    White –
    Ground, Black – Positive

  Specifications

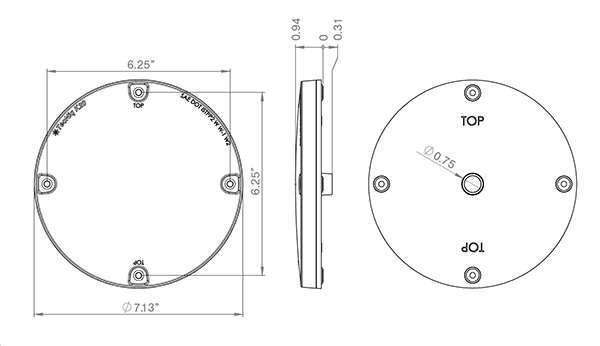

Dimensions:
LEDs: 37
Voltage: 9-14 VDC
Current: ≈0.014A – low/tail
≈0.9A – high/flasher
Wire: 8.3" pigtail unsheathed
Mounting: Surface for standard 7"
LED Colors: Red • Amber • White
Wire Colors:
  White
White WireGround
Black Wire12VDC Power

  Stop/Tail/Turn
White WireGround
Black Wire12V Tail
Red Wire12V Stop/Turn

  Part Numbers

Part NumberDescriptionLED – LensStdPackConnector
K20-AAS0-1Steady 7in Round Amber Flasher Lamp Amber Lens - Non-AutoSync   158.3" Pigtail
K20-AAT0-1Steady 7in Round Amber Turn Amber Lens - Non-AutoSync   158.3" Pigtail
K20-RRS0-1Steady 7in Round Red Flasher Lamp Red Lens - Non-AutoSync   158.3" Pigtail
K20-STR0-1Steady 7in Round Red STT Red Lens - Non-AutoSync   158.3" Pigtail
K20-WBU0-1Steady 7in Round White Backup Lamp - Non-AutoSync   158.3" Pigtail
