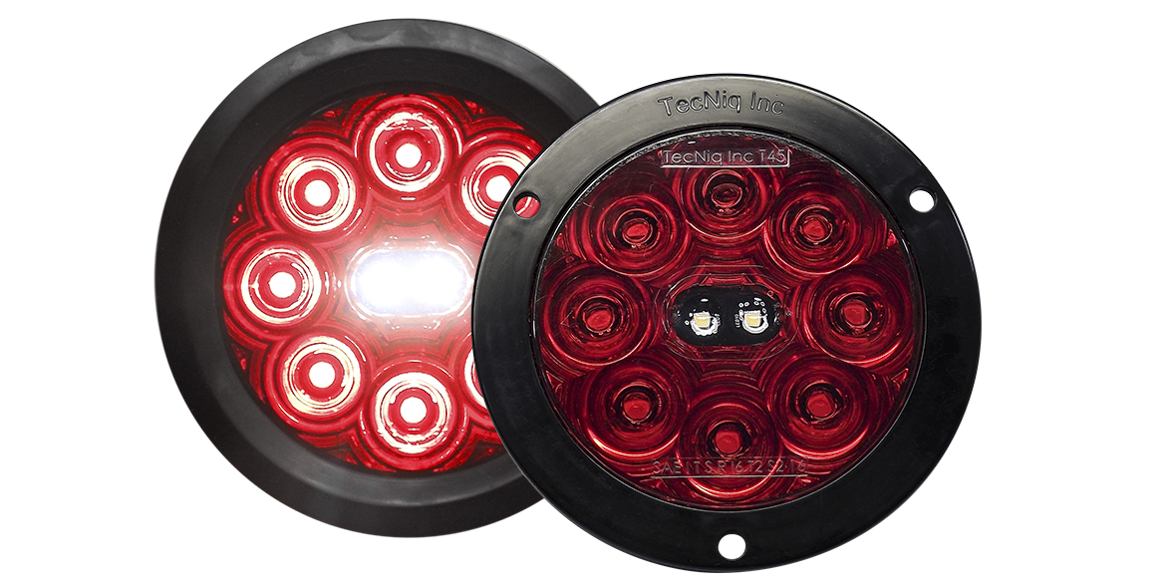

T45 : 4" High Visibility STTR

* Some part numbers for this product ship without mounting hardware. Please be sure to add mounting hardware to the PO, if needed.
My Part List (0 items) $0.00

Related Products


  Features

  • Save time and money with our new combination Stop/Tail/Turn and Reverse Light
  • Fits all standard 4" round applications
  • Available in grommet or flange mount
  • High intensity function only draws 0.13A at 12VDC
  • Reverse function uses an additional 0.3A
  • TecSeal Urethane Potting - Guaranteed Circuit Board Protection
  • Excellent UV Resistance - Automotive exterior lighting grade polycarbonate
  • IP68 Rated - Dust and water proof with hermetic seal
  • Meets all FMVSS 108 requirements for wide and narrow vehicles
  • Reliable performance over 100,000 hours
  • Lifetime Warranty
  • WIRE COLORS
    White –
    Ground, Red – High/Turn, Black – Low/Dim, Yellow – Reverse

  Specifications

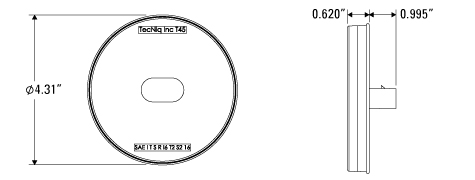

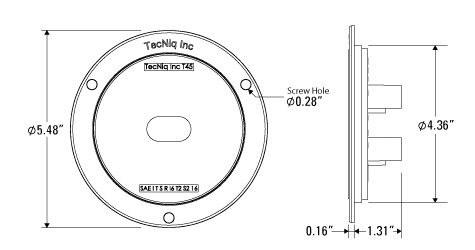

Dimensions:
LEDs: 8 red /2 white
Voltage: 9 - 14V DC
Current: 0.11A-0.15A Red
0.3A (reverse)
Connector:
Mounting: Fits standard mounting holes
LED Colors: Red/White
Mounting Styles:
Wire Colors:
White WireGround
Yellow WireReverse
Red WireStop/Turn
Black WireTail

  Part Numbers

Part NumberDescriptionLED – LensStdPackConnector
T40-0G00-14" Round Grommet   100-
T40-0G20-14" Round Grommet High Grip   100-
T40-0S00-14" Round Trim Ring SS   100-
T45-RC0A-14" Round STTR Clear Lens Grommet Mount Amp   100Amp
T45-RC0P-14" Round STTR Clear Lens Grommet Mount Pigtail   100Pigtail
T45-RC0T-14" Round STTR Clear Lens Grommet Mount Tri-Pole   100Tri Pole
T45-RCFA-14" Round STTR Clear Lens Flush Mount Amp   100Amp
T45-RCFP-14" Round STTR Clear Lens Flush Mount Pigtail   100Pigtail
T45-RCFT-14" Round STTR Clear Lens Flush Mount Tri-Pole   100Tri Pole
T45-RW0A-14" Round STTR Red Lens Grommet Mount Amp   100Amp
T45-RW0P-14" Round STTR Red Lens Grommet Mount Pigtail   100Pigtail
T45-RW0T-14" Round STTR Red Lens Grommet Mount Tripole   100Tri Pole
T45-RWFA-14" Round STTR Red Lens Flush Mount Amp   100Amp
T45-RWFP-14" Round STTR Red Lens Flush Mount Pigtail   100Pigtail
T45-RWFT-14" Round STTR Red Lens Flush Mount Tri-Pole   100Tri Pole
T99-0010-112" 3-Pole .156" Bullet w/#6 GND Lug - Straight   -Tri Pole
T99-0020-112" 3-Pole .156" Bullet w/#6 GND Lug - 90 degree   -Tri Pole
T99-0040-1Amp - Pigtail Wire Adapter   -Amp
T99-0050-1Amp - Tripole Adapter   -Amp - Tri Pole
T99-0060-1Y Style plug with 6" wires   -Tri Pole
