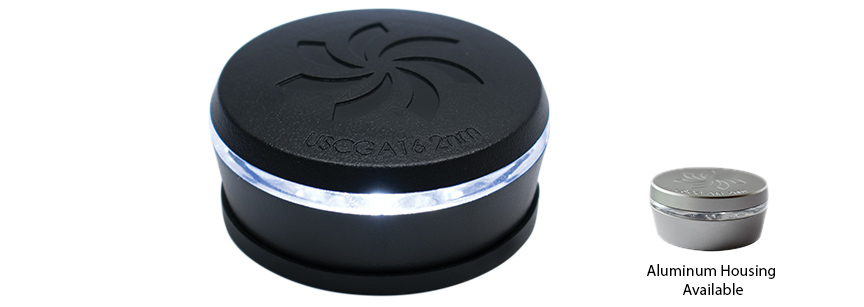

M10 : All-Round Navigation Light

My Part List (0 items) $0.00

Related Products


  Features

  • Great looking light, designed to provide years of safe boating
  • Twist-lock base provides easy installation and hidden fasteners
  • TecSeal Urethan Potting - Guaranteed Circuit Board Protection
  • Excellent UV Resistance
  • Meets ABYC A-16 and USCG 2NM
  • 360 degree visibility
  • 100mA power draw
  • Includes TPE mounting gasket
  • Also available with aluminum housing
  • WIRE COLORS
    Black –
    Ground, White – Positive

  Specifications

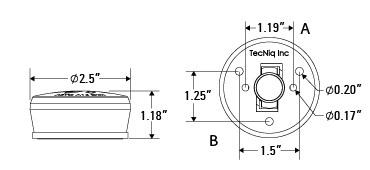

Dimensions:
LEDs: 1
Range: 2 Nautical Miles
Voltage: 9 - 14V DC
Current: 0.09A - 0.11A
Wire: 9" Sheathed Pigtail
Mounting: Surface mounted with two different screw patterns
LED Colors: White
Angle: 360° Light Output

  Part Numbers

Part NumberDescriptionLED – LensStdPackConnector
M10-WA00-1M10- All around Lamp Aluminum w Twist Lock   12Pigtail (9")
M10-WB00-1M10 All Round Lamp Black Cover   12Pigtail (13")
M10-WB10-1M10 All Round Lamp Black Cover 16' Wire   12Pigtail (16")
