M50 : Water Dragon Underwater Lighting

The brightest surface mounted under water lights available

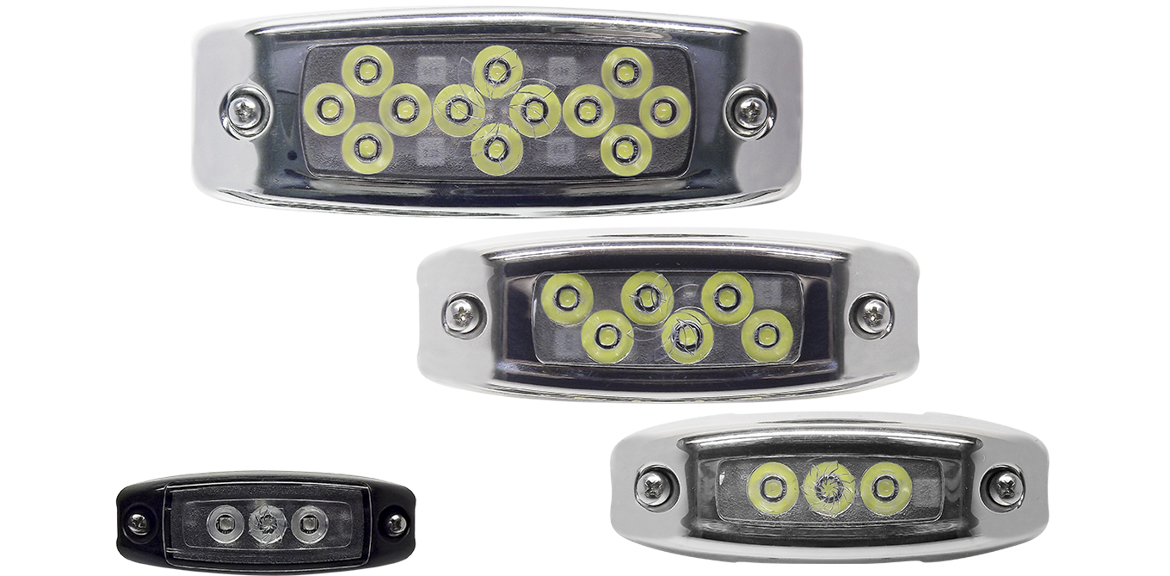

3 LED Model - 375 lumens each
3 LED Model - 1500 lumens each
6 LED Model - 2700 lumens each
12 LED Model - 5500 lumens each

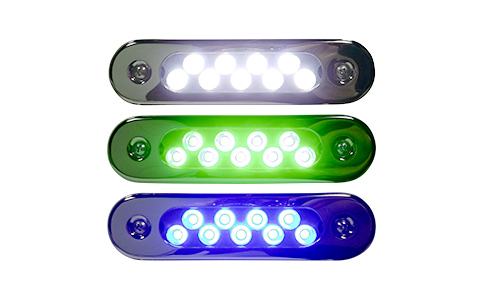

Available in three vibrant colors, White, Blue & Green
Includes 316 polished stainless steel covers

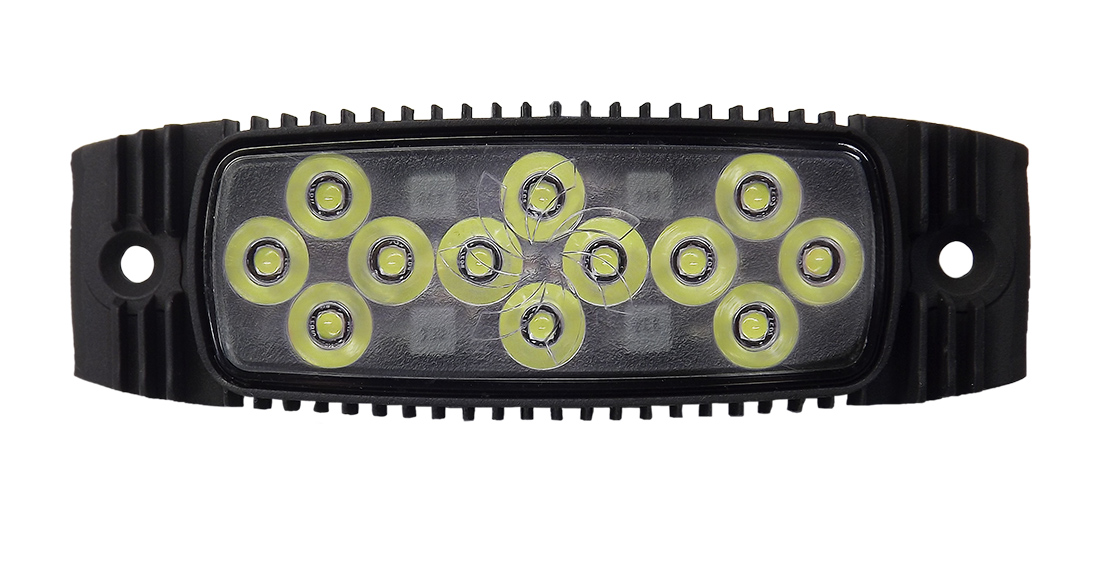

Anodized die-cast aluminum body
Thermal overheat protection
Operates at 9 - 30V DC (metal body model)
TecSeal Urethane Potting - Guaranteed Circuit Board Protection
Surface mount design is a snap to install, no large holes to seal
Available in color changing RGB option
WIRE COLORS
Black – Ground, White – Positive (RGB available in (4) & (5) wire)

Product Description

TecNiq's M50 Water Dragon lights are some of the brightest on the market, available in 3-12 diodes and multiple colors, featuring our proprietary potting, anodized die-cast aluminum body and 316 stainless steel cover. Ready to surface mount and provide vibrant underwater lighting for years to come. A quality product, backed by the TecNiq guarantee.

Downloads

Document	Size
M50 Product Sheet	411 KB
M50-12LED Specification Sheet	75 KB
M50-3LED Specification Sheet	69 KB
M50-6LED Specification Sheet	73 KB

Product Specifications

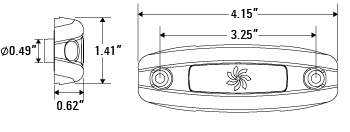

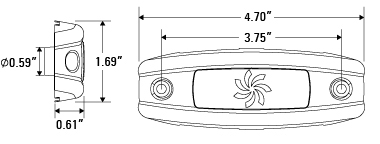

Dimensions:

5.88"x 2.14"x 0.60"

4.7"x 1.69"x 0.61"

4.15"x 1.41"x 0.62"

LEDs:

3 / 6 / 12

Lumens:

1500 / 2700 / 5500
375 lm (M51 Model)

Voltage:

9 - 30V DC (M50 Models)
9 - 14V DC (M51 Model)

Current:

White

3-LED plastic: 0.27A - 0.33A
3-LED metal: 1.08A - 1.32A
6-LED metal: 1.98A - 2.42A
12-LED metal: 3.96A - 4.84A

Blue/Green

3-LED plastic: 0.27A - 0.33A
3-LED metal: 0.6A - 0.73A
6-LED metal: 1.13A - 1.38A
12-LED metal: 2.25A - 2.75A

LED Colors:

White • Blue • Green • RGB

Wire:

36" Sheathed Pigtail
72" Sheathed Pigtail (RGB models)

Wire Colors:

White Model

Black Wire	—	Ground
White Wire	—	12/24VDC Power

RGB Model

White Wire	—	12/24VDC Power
Red Wire	—	Ground (Red)
Green Wire	—	Ground (Green)
Blue Wire	—	Ground (Blue)

Mounting:

Surface mount using (2) screws with approximately 5/8" wire hole

Part Numbers

Part Number	Description	LED – Lens	StdPack	Connector
M50-3S03-1	3 LED Underwater Light RGB Stainless Cover		10	Sheathed Pigtail (72")
M50-3S03R-1	Water Dragon Underwater Light Resistive Design, RGB 3 LED		10	Sheathed Pigtail (72")
M50-3S06-1	6 LED Underwater Light RGB Stainless Cover		10	Sheathed Pigtail (72")
M50-3S06R-1	Water Dragon Underwater Light Resistive Design, RGB 6 LED		10	Sheathed Pigtail (72")
M50-3S12-1	12 LED Underwater Light RGB Stainless Cover		10	Sheathed Pigtail (72")
M50-BS03-1	3 LED Underwater Light Blue Stainless Cover		10	Sheathed Pigtail (36")
M50-BS06-1	6 LED Underwater Light Blue Stainless Cover		10	Sheathed Pigtail (36")
M50-BS12-1	12 LED Underwater Light Blue Stainless Cover		10	Sheathed Pigtail (36")
M50-BS12D-1	12 LED Underwater Light Blue Stainless Cover w/ Delphi Connector		10	Sheathed Pigtail (36")
M50-GS03-1	3 LED Underwater Light Green Stainless Cover		10	Sheathed Pigtail (36")
M50-GS06-1	6 LED Underwater Light Green Stainless Cover		10	Sheathed Pigtail (36")
M50-GS12-1	12 LED Underwater Light Green Stainless Cover		10	Sheathed Pigtail (36")
M50-WS03-1	3 LED Underwater Light White Stainless Cover		10	Sheathed Pigtail (36")
M50-WS06-1	6 LED Underwater Light White Stainless Cover		10	Sheathed Pigtail (36")
M50-WS12-1	12 LED Underwater Light White Stainless Cover		10	Sheathed Pigtail (36")
M50-WS12F-1	12 LED Underwater Light White SS Cover w/ DT06-2S Pinned and Kitted		10	DT06-2S
M50-WSY12F-1	12 LED Abovewater Light White Stainless Cover w/DT06-2S Pinned and Kitted		10	DT06-2S
M51-BB03-1	Water Dragon Underwater Light, Blue 3 LED *Plastic model (Only 3 LED available)		10	Sheathed Pigtail (36")
M51-GB03-1	Water Dragon Underwater Light Green, 3 LED *Plastic model (Only 3 LED available)		10	Sheathed Pigtail (36")
M51-WB03-1	Water Dragon Underwater Light,White 3 LED *Plastic model (Only 3 LED available)		10	Sheathed Pigtail (36")
