T70 : 6" Oval LED High Visibility STTR

* Some part numbers for this product ship without mounting hardware. Please be sure to add mounting hardware to the PO, if needed.

Save time and money with our new combination Stop/Tail/Turn and Reverse Light
Fits all standard 6" oval applications
360° optics allow lights to be mounted at any angle

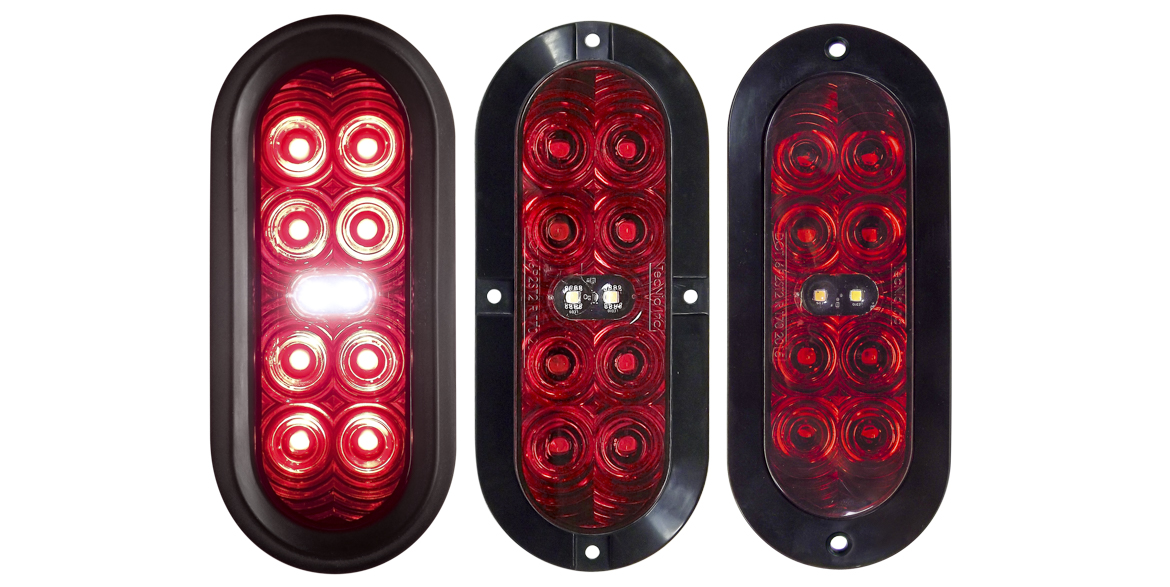

Available in grommet, surface, or flange mount
High intensity function only draws 0.14A at 12VDC
Reverse function uses an additional 0.30A
Lifetime Warranty
DOT Rated
WIRE COLORS
White – Ground, Red – High/Turn, Black – Low/Dim, Yellow – Reverse

Related Products

Add to PO

6" Oval Grommet

Add to PO

6" Oval Surface Mount Trim Ring Black

Add to PO

6" Oval Surface Mount Trim Ring Chrome

Add to PO

.090 Thick Neoprene Gasket

Add to PO

12" 3-Pole .156" Bullet w/#6 GND Lug - Straight

Add to PO

12" 3-Pole .156" Bullet w/#6 GND Lug - 90 degree

Add to PO

Amp - Pigtail Wire Adapter

Add to PO

Amp - Tripole Adapter

Add to PO

Y Style plug with 6" wires

4" High Visibility STTR

Stop/Tail/Turn/Reverse

6" Oval Stop/Tail/Turn Grommet Mount

6" Oval Stop/Tail/Turn Surface Mount

6" Oval Stop/Tail/Turn

6" Oval Stop/Tail/Turn Flange Mount

6" Oval LED High Visibility STT

Product Description

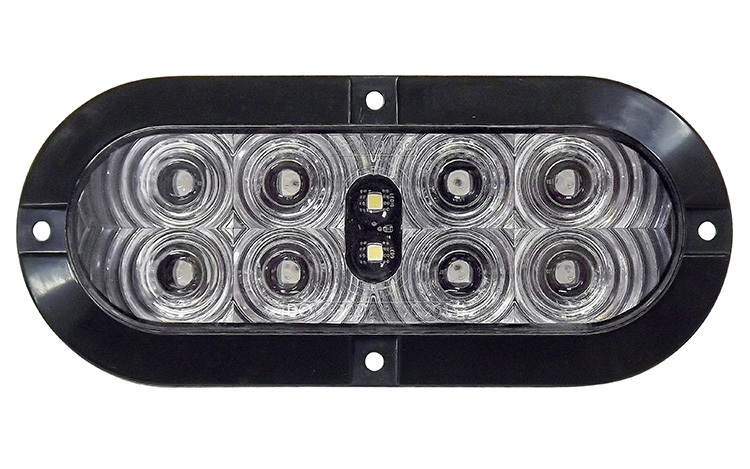

TecNiq's 6" oval LED stop/tail/turn with integrated reverse light. By bringing the four functions together in one light, you'll save on installation and product costs, including inventory and shipping expenses. These lights employ the same world-leading lens design and high quality construction used throughout our product line to create a top quality, cost-effective lighting solution.

Downloads

Document	Size
T70 Product Sheet	413 KB
T70 Specification Sheet	342 KB

9 - 14V DC

Current:

0.11A-0.13A Red (brake)
0.24A-0.30A White

Connector:

LED Colors:

Red/White

Mounting Styles:

Wire Colors:

White Wire	—	Ground
Yellow Wire	—	Reverse
Red Wire	—	Stop/Turn
Black Wire	—	Tail

Part Numbers

Part Number	Description	LED – Lens	StdPack	Connector
T60-0G00-1	6" Oval Grommet		-	-
T61-0B00-1	6" Oval Surface Mount Trim Ring Black		-	-
T61-0C00-1	6" Oval Surface Mount Trim Ring Chrome		-	-
T61-0G00-1	.090 Thick Neoprene Gasket		-	-
T62-0S00-1	SS trim ring for oval tail lamp		-	-
T70-RC0A-1	Oval Grommet Stop Tail Reverse Clear 2 Amp Connectors		100	Amp
T70-RC0P-1	Oval Grommet Stop Tail Reverse Clear 2 Pigtail Wire		120	Pigtail
T70-RC0T-1	Oval Grommet Stop Tail Reverse Clear 2 Tri Pole Connectors		100	Tri Pole
T70-RCFA-1	Oval Flange Stop Tail Reverse Clear 2 Amp Connectors		120	Amp
T70-RCFP-1	Oval Flange Stop Tail Reverse Clear 2 Pigtail Wire		140	Pigtail
T70-RCSA-1	Oval Surface Stop Tail Reverse Clear 2 Amp Connectors		120	Amp
T70-RCSP-1	Oval Surface Stop Tail Reverse Clear 2 Pigtail Wire		140	Pigtail
T70-RCST-1	Oval Surface Stop Tail Reverse Clear 2 Tri Pole Connectors		120	Tri Pole
T70-RW0A-1	Oval Grommet Stop Tail Reverse 2 Amp Connectors		100	Amp
T70-RW0P-1	Oval Grommet Stop Tail Reverse 2 Pigtail Wire		120	Pigtail
T70-RW0T-1	Oval Grommet Stop Tail Reverse 2 Tri Pole Connectors		100	Tri Pole
T70-RWFA-1	Oval Flange Stop Tail Reverse 2 Amp Connectors		100	Amp
T70-RWFP-1	Oval Flange Stop Tail Reverse 2 Pigtail Wire		140	Pigtail
T70-RWSA-1	Oval Surface Stop Tail Reverse 2 Amp Connectors		120	Amp
T70-RWSB-1	Oval Surface Stop Tail Reverse W/.180 Bullets		140	0.180" Bullets
T70-RWSP-1	Oval Surface Stop Tail Reverse 2 Pigtail Wire		140	Pigtail
T70-RWSPA-1	Oval Surface Stop Tail Reverse 2 Pigtail Wire w Amp Connector		120	Amp
T70-RWST-1	Oval Surface Stop Tail Reverse 2 Tri Pole Connectors		120	Tri Pole
T99-0010-1	12" 3-Pole .156" Bullet w/#6 GND Lug - Straight		-	Tri Pole
T99-0020-1	12" 3-Pole .156" Bullet w/#6 GND Lug - 90 degree		-	Tri Pole
T99-0040-1	Amp - Pigtail Wire Adapter		-	Amp
T99-0050-1	Amp - Tripole Adapter		-	Amp - Tri Pole
T99-0060-1	Y Style plug with 6" wires		-	Tri Pole

T70 : 6" Oval LED High Visibility STTR

Related Products

Product Description

Downloads

Product Specifications

Flange Mount - 8.00"x 3.25"x 1.37"

Grommet Mount - 6.45"x 2.22"x 1.48"

Surface Mount - 7.5"x 3.3"x 1.65"

Amp Connector

Tri-Pole Connector

9" pigtail
