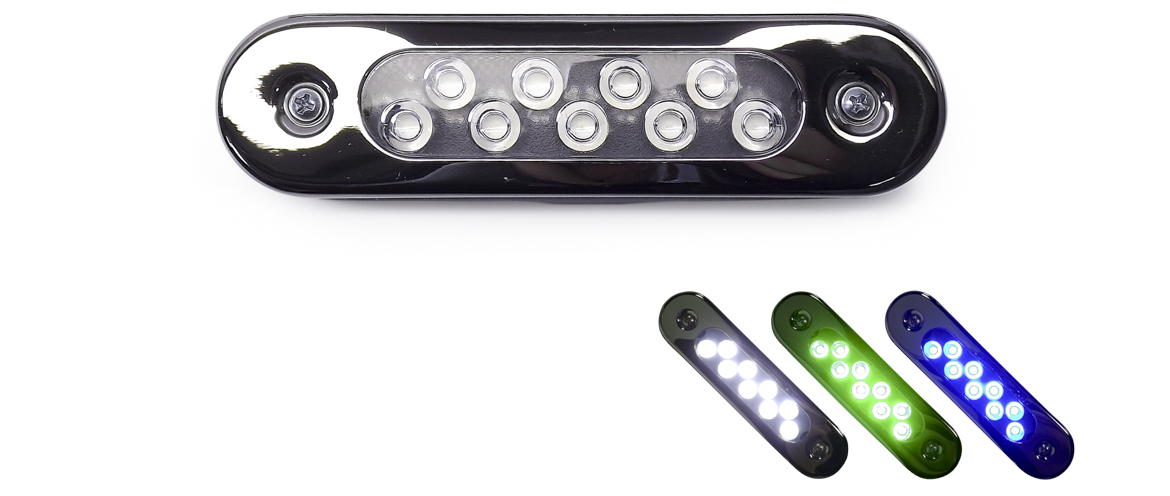

M50 : Water Dragon Underwater Lighting

  • The brightest surface mounted under water lights available
  • 3 LED Model - 375 lumens each
  • 3 LED Model - 1500 lumens each
  • 6 LED Model - 2700 lumens each
  • 12 LED Model - 5500 lumens each
  • Available in three vibrant colors, White, Blue & Green
  • Includes 316 polished stainless steel covers
  • Anodized die-cast aluminum body
  • Thermal overheat protection
  • Operates at 9 - 30V DC (metal body model)
  • TecSeal Urethane Potting - Guaranteed Circuit Board Protection
  • Surface mount design is a snap to install, no large holes to seal
  • Available in color changing RGB option
  • WIRE COLORS
    Black –
    Ground, White – Positive (RGB available in (4) & (5) wire)
Dust and Waterproof. IP68 Rated.
Meets all FMVSS 108 requirements.
Reliable over 50,000 hours.

  Product Description

TecNiq's M50 Water Dragon lights are some of the brightest on the market, available in 3-12 diodes and multiple colors, featuring our proprietary potting, anodized die-cast aluminum body and 316 stainless steel cover. Ready to surface mount and provide vibrant underwater lighting for years to come. A quality product, backed by the TecNiq guarantee.

  Product Specifications

Dimensions:
LEDs: 3 / 6 / 12
Lumens: 1500 / 2700 / 5500
375 lm (M51 Model)
Voltage: 9 - 30V DC (M50 Models)
9 - 14V DC (M51 Model)
Current:
  White
3-LED plastic: 0.27A - 0.33A
3-LED metal: 1.08A - 1.32A
6-LED metal: 1.98A - 2.42A
12-LED metal: 3.96A - 4.84A
  Blue/Green
3-LED plastic: 0.27A - 0.33A
3-LED metal: 0.6A - 0.73A
6-LED metal: 1.13A - 1.38A
12-LED metal: 2.25A - 2.75A
LED Colors: White • Blue • Green • RGB
Wire: 36" Sheathed Pigtail
72" Sheathed Pigtail (RGB models)
Wire Colors:
  White Model
Black WireGround
White Wire12/24VDC Power

  RGB Model
White Wire12/24VDC Power
Red WireGround (Red)
Green WireGround (Green)
Blue WireGround (Blue)
Mounting: Surface mount using (2) screws with approximately 5/8" wire hole

  Part Numbers

Part NumberDescriptionLED – LensStdPackConnector
M50-3S03-13 LED Underwater Light RGB Stainless Cover   10Sheathed Pigtail (72")
M50-3S03R-13 LED Underwater Light Resistive RGB Stainless Cover   10Sheathed Pigtail (72")
M50-3S06-16 LED Underwater Light RGB Stainless Cover   10Sheathed Pigtail (72")
M50-3S06R-16 LED Underwater Light Resistive RGB Stainless Cover   10Sheathed Pigtail (72")
M50-3S12-112 LED Underwater Light RGB Stainless Cover   10Sheathed Pigtail (72")
M50-BS03-13 LED Underwater Light Blue Stainless Cover   10Sheathed Pigtail (36")
M50-BS06-16 LED Underwater Light Blue Stainless Cover   10Sheathed Pigtail (36")
M50-BS12-112 LED Underwater Light Blue Stainless Cover   10Sheathed Pigtail (36")
M50-BS12D-112 LED Underwater Light Blue Stainless Cover w/ Delphi Connector   10Sheathed Pigtail (36")
M50-GS03-13 LED Underwater Light Green Stainless Cover   10Sheathed Pigtail (36")
M50-GS06-16 LED Underwater Light Green Stainless Cover   10Sheathed Pigtail (36")
M50-GS12-112 LED Underwater Light Green Stainless Cover   10Sheathed Pigtail (36")
M50-WS03-13 LED Underwater Light White Stainless Cover   10Sheathed Pigtail (36")
M50-WS06-16 LED Underwater Light White Stainless Cover   10Sheathed Pigtail (36")
M50-WS12-112 LED Underwater Light White Stainless Cover   10Sheathed Pigtail (36")
M50-WS12F-112 LED Underwater Light White Stainless Cover w DT06-2S   10DT06-2S
M50-WSY12F-112 LED Aboverwater Light White Stainless Cover w DT06-2S   10DT06-2S
M51-BB03-1Water Dragon Underwater Light, Blue 3 LED

*Plastic model (Only 3 LED available)

   10Sheathed Pigtail (36")
M51-GB03-1Water Dragon Underwater Light Green, 3 LED

*Plastic model (Only 3 LED available)

   10Sheathed Pigtail (36")
M51-WB03-1Water Dragon Underwater Light,White 3 LED

*Plastic model (Only 3 LED available)

   10Sheathed Pigtail (36")
