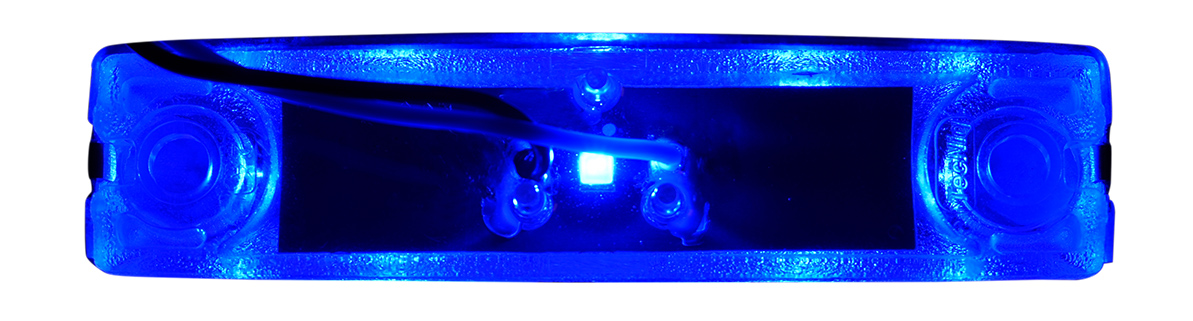

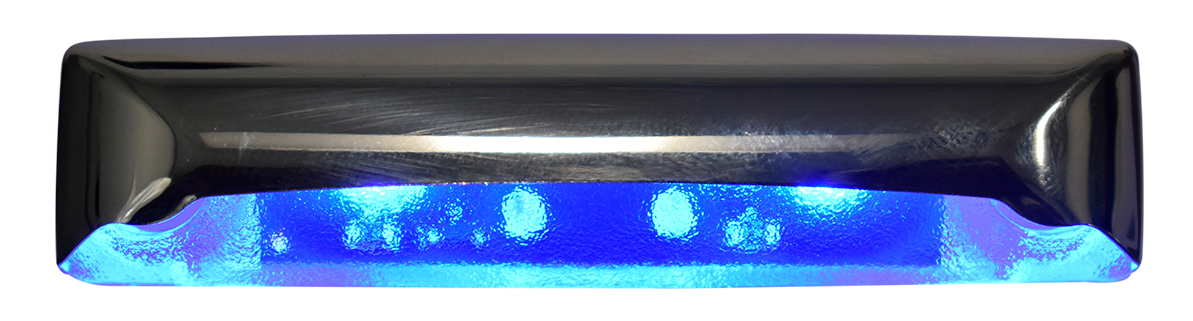

M07 : Seat Light

RGB Model Available

Related Products

Accent Lights

Livewell Lights

Ancillary Accent Light

Product Specifications

Dimensions:	3.49"x 5"x 0.86"
LEDs:	3
Voltage:	9 - 14V DC
Current:	0.088A - 0.112A White 0.064A - 0.08A Blue Current Varies RGB
LED Colors:	White • Blue • RGB
Wire:	7.5" Pigtail and Bullet
Mounting:	Screw mounted with 2 #10 Screws

Downloads

Document	Size
M07 Product Sheet	2384 KB

Part Numbers

Part Number	Description	LED – Lens	StdPack	Connector
M07-3S00-1	3 LED RGB Seat Light SS Cover w Pigtails		-	Pigtail (9")
M07-3S0F-1	3 LED RGB Seat Light SS Cover w xT04-4P		-	xT04-4P
M07-3S0H-1	3 LED RGB Seat Light SS Cover w Bullets/Barrels Harness		-	Bullet/Barrel Harness
M07-BS00-1	3 LED Blue Seat Light SS Cover w Pigtails		-	Pigtail (9")
M07-BS0D-1	3 LED Blue Seat Light SS Cover w Weatherpack		-	Weatherpack
M07-BSBS-1	3 LED Blue Seat Light SS Cover w 180 Bullet/Barrel		-	0.180" Bullets
