TecNiq | K10

K10 : Flashing Beacon

IP68 Rated - Dust and Waterproof
Approval: SAE J845 Class 1
Power: 12V/24 VDC
Surface or 1" pole mount option
Black powder coated die cast aluminum base
Includes mounting gasket to protect vehicle surface

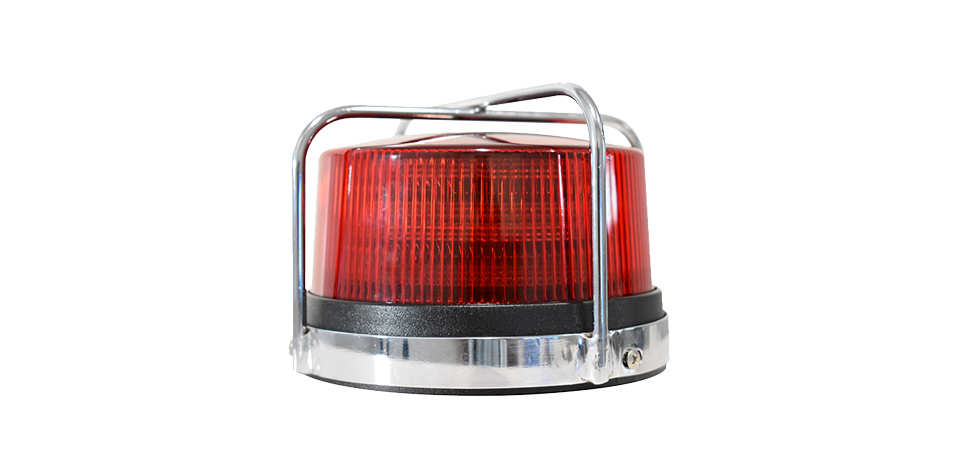

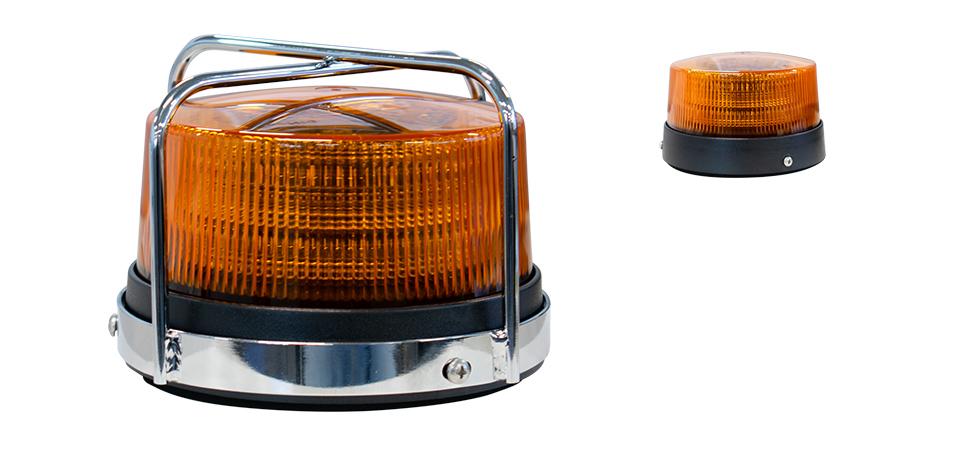

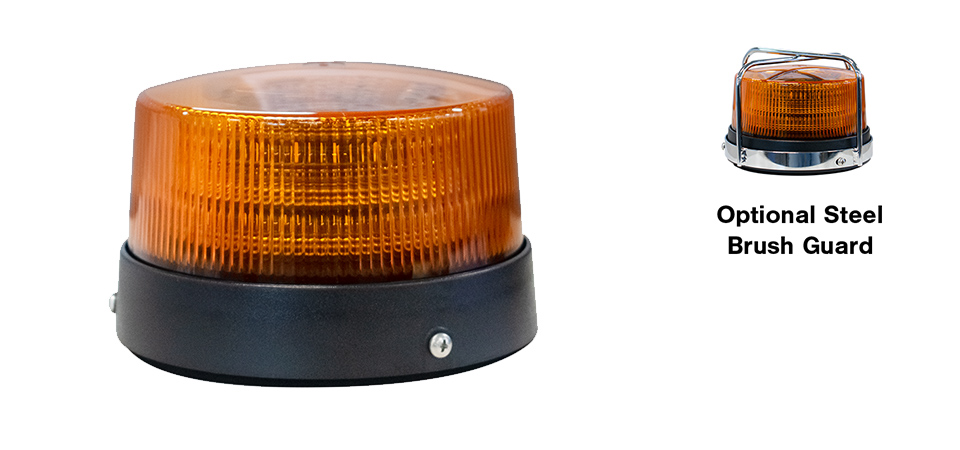

Optional chrome plated steel brush guard
Lifetime Warranty
WIRE COLORS
Black – Ground, Red – Positive, White – Pattern Selection, Yellow – Night Mode, White/Blue – Wig-Wag (opposite pattern phase)

Related Products

5"x 3.3" LED Emergency Flasher

5"x 2" LED Emergency Flasher

6"x 4" LED Emergency Flasher

6"x 4" Chrome Quad Bezel

7"x 3" LED Emergency Flasher

9"x 7" LED Emergency Flasher

Product Description

The K10 beacon is IP68 rated and meets SAE J845 Class 1 specifications. A great addition to any work truck, our dependable beacon is available in single flash or multiple flash patterns and can be ordered with an optional chrome brush guard. Attractive look, rugged build and the benefit of the TecNiq Lifetime guarantee.

Downloads

Document	Size
K10 Programmable Wiring Guide	256 KB
K10 Product Sheet	858 KB
K10 Specification Sheet	67 KB

Product Specifications

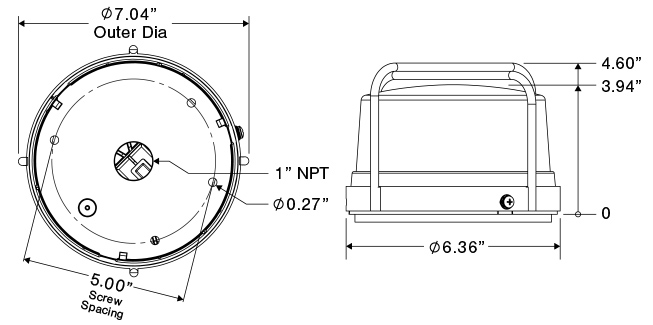

Dimensions:

7.04" diameter x 4.6" Tall (with brush guard)

LEDs:

Voltage:

12/24 VDC

Current:

Hi - ≈0.7A (average) – 1.7A (peak)
Lo - ≈0.17A (average) – 0.3A (peak)

Wire:

8.5" pigtail

Mounting:

Surface or Pole Mount (1" NPT width)

LED Colors:

Red • Amber • Green • Blue • Green/Amber

Flash Patterns

Pattern		Duty Cycle	Pulses Per Min
1	Single Flash	40%	75
2	Double Flash	40%	75
3	Triple Flash	40%	75
4	Quad Flash	40%	75
5	Pent Flash	40%	75
6	Six Flash	40%	75
7	Seven Flash	40%	75

Wire Colors:

Flasher

Red Wire	—	High Intensity
Black Wire	—	Ground
Yellow Wire	—	Low Intensity(Night Mode)
White Wire	—	Flash Pattern Change
Blue Wirewhite stripe	—	Wig-Wag wireConnect to power for opposite phase

Single Flash

Red Wire	—	High Intensity
Black Wire	—	Ground
Yellow Wire	—	Low Intensity

Part Numbers

Part Number	Description	LED – Lens	StdPack	Connector
K10-0CB0-1	K10 Chrome Brush Guard		1	-
K10-AA0P-1	K10 Amber Beacon Light Amber Lens Single Flash Pattern W/Pigtail		1	8.5" Pigtail
K10-AADP-1	Amber Beacon Light Amber Lens Autosync Multi-Flash Pattern W/Pigtail		1	8.5" Pigtail

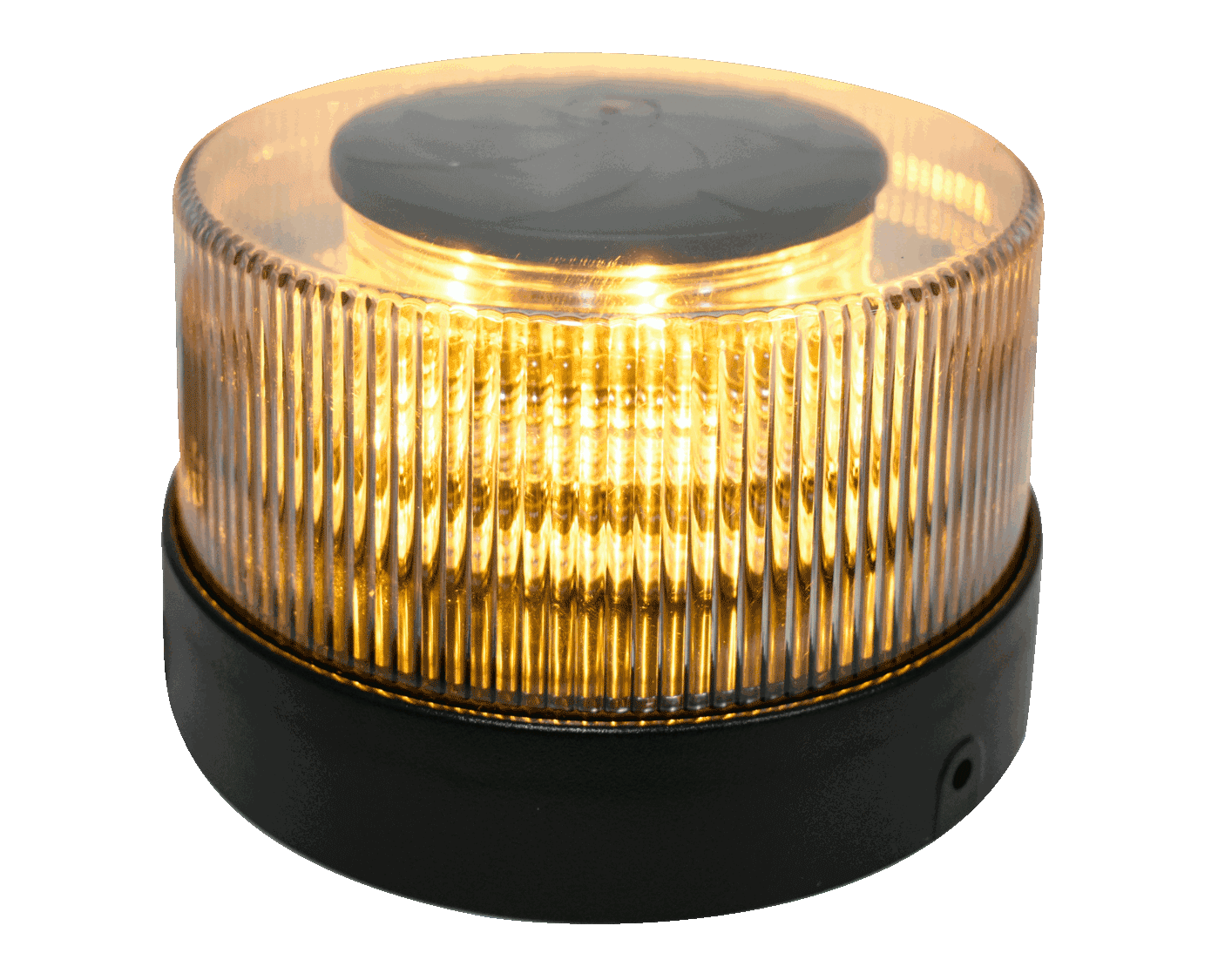

K10-AGDP-1	Amber Green Dual Color Beacon Light Autosync Multi-Flash Pattern w/ Pigtail		1	8.5" Pigtail
K10-AWDP-1	Amber White Dual Color Beacon Light Autosync Multi-Flash Pattern w/ Pigtail		1	8.5" Pigtail
K10-BCDP-1	Blue Beacon Light Clear Lens Autosync Multi-Flash Pattern W/ Pigtail		1	8.5" Pigtail
K10-GCDP-1	Green Beacon Light Clear Lens Autosync Multi-Flash Pattern W/Pigtail		1	8.5" Pigtail
K10-RCDP-1	Red Beacon Light Clear Lens Autosync Multi-Flash Pattern W/ Pigtail		1	8.5" Pigtail
K10-RR0P-1	Red Beacon Light Red Lens Single Flash Pattern W/ Pigtail		1	8.5" Pigtail
K10-RRDP-1	Red Beacon Light Red Lens Autosync Multi-Flash Pattern W/ Pigtail		1	8.5" Pigtail
