K40 : 5"x 3.3" LED Flasher with AutoSync
My Part List (0 items) $0.00
Features
- Powerful 5”x 3.3” warning lamp fits standard mounting holes

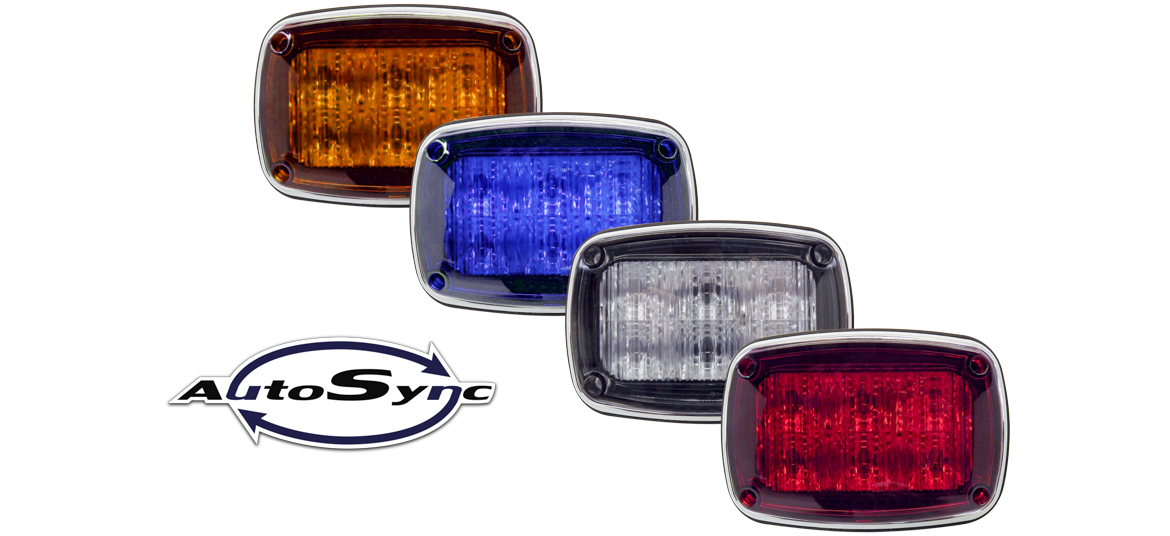

- Patent-pending AutoSync technology means all TecNiq flashers are synchronized without requiring a separate control box
- Steady burn model also available for all colors
- TecSeal Urethane Potting - Guaranteed Circuit Board Protection
- Durable impact resistant lens
- Excellent UV Resistance - Automotive exterior lighting grade polycarbonate
- IP68 Rated for long-term dust and water-intrusion proof
- Meets all NFPA 1901 and Triple K specifications, including upcoming regulations
Specifications

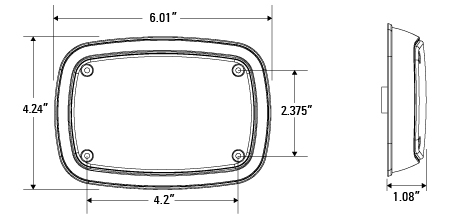

| Dimensions: | |||||||||||||||||||||||||
| LEDs: | 6 | ||||||||||||||||||||||||
| Voltage: | 9 - 14V DC | ||||||||||||||||||||||||
| Current: | ≈ 1.1A (average) – 2.2A (peak) | ||||||||||||||||||||||||
| Wire: |
9" pigtail
|
||||||||||||||||||||||||
| Mounting: | Surface mount using just (4) screws (included) | ||||||||||||||||||||||||
| LED Colors: | Red • Amber • Green • Blue Red/White • Red/Blue • Blue/White • Red/Amber |
||||||||||||||||||||||||
| Flash Patterns |
*K90 PicturedAnimation performance may vary
|
||||||||||||||||||||||||
| Wire Colors: | AutoSync Flasher
Stop/Turn/Tail & Steady Burn Flasher
|
Part Numbers
| Part Number | Description | LED – Lens | StdPack | Connector |
| K40-0100-1 | K40/ K50 Anchor / Screw Kit | 1 | - | |

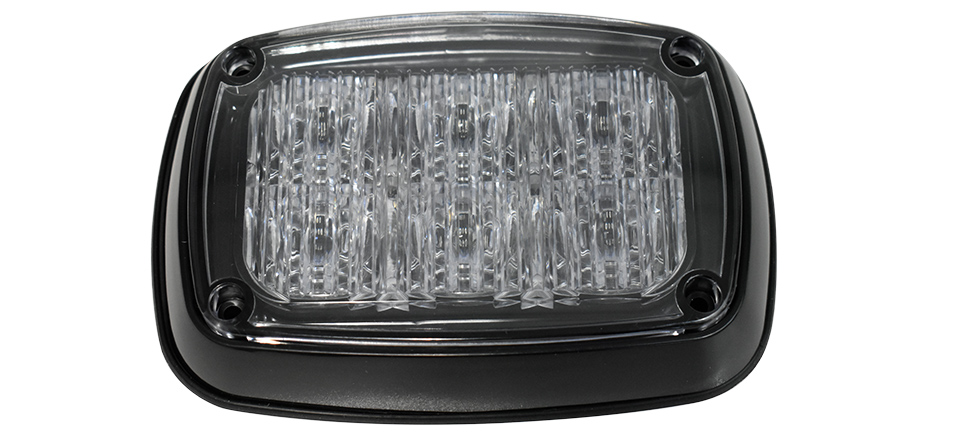

| K40-1B00-1 | K40 Black Trim Ring and Gasket | 1 | - | |
| K40-1C00-1 | K40 Chrome Trim Ring and Gasket | 1 | - | |
| K40-AA00-1 | K40 AutoSync Amber Flasher Lamp Amber Lens |   | 1 | Pigtail |
| K40-AAS0-1 | K40 Steady Amber Flasher Lamp Amber Lens | | 1 | Pigtail |
| K40-AC00-1 | K40 AutoSync Amber Flasher Lamp Clear Lens |  | 1 | Pigtail |
| K40-ACS0-1 | K40 Steady Amber Flasher Lamp Clear Lens | | 1 | Pigtail |
| K40-AR00-1 | K40 AutoSync Amber Red Combo Flasher Lamp Clear Lens |  | 1 | Pigtail |
| K40-BB00-1 | K40 AutoSync Blue Flasher Lamp Blue Lens |   | 1 | Pigtail |
| K40-BBS0-1 | K40 Steady Blue Flasher Lamp Blue Lens | | 1 | Pigtail |
| K40-BC00-1 | K40 AutoSync Blue Flasher Lamp Clear Lens | | 1 | Pigtail |
| K40-BCS0-1 | K40 Steady Blue Flasher Lamp Clear Lens | | 1 | Pigtail |
| K40-BR00-1 | K40 AutoSync Blue Red Combo Flasher Lamp Clear Lens |  | 1 | Pigtail |
| K40-GC00-1 | K40 AutoSync Green Flasher Lamp Clear Lens |  | 1 | Pigtail |
| K40-GCS0-1 | K40 Steady Green Flasher Lamp Clear Lens | | 1 | Pigtail |
| K40-GG00-1 | K40 AutoSync Green Flasher Lamp Green Lens |  | 1 | Pigtail |
| K40-GGS0-1 | K40 Steady Green Flasher Lamp Green Lens | | 1 | Pigtail |
| K40-RC00-1 | K40 AutoSync Red Flasher Lamp Clear Lens |  | 1 | Pigtail |
| K40-RCS0-1 | K40 Steady Red Flasher Lamp Clear Lens | | 1 | Pigtail |
| K40-RR00-1 | K40 AutoSync Red Flasher Lamp Red Lens |  | 1 | Pigtail |
| K40-RRS0-1 | K40 Steady Red Flasher Lamp Red Lens | | 1 | Pigtail |
| K40-WA00-1 | K40 AutoSync White Amber Combo Flasher Lamp Clear Lens |  | 1 | Pigtail |
| K40-WB00-1 | K40 AutoSync White Blue Combo Flasher Lamp Clear Lens |  | 1 | Pigtail |
| K40-WC00-1 | K40 AutoSync White Flasher Lamp Clear Lens |  | 1 | Pigtail |
| K40-WCS0-1 | K40 Steady White Flasher Lamp Clear Lens | | 1 | Pigtail |
| K40-WR00-1 | K40 AutoSync White Red Combo Flasher Lamp Clear Lens |  | 1 | Pigtail |
Documentation
| Document | Size |
 Flasher Instructions | 127 KB |
| K40 Product Sheet | 549 KB |
| K40 Specification Sheet | 264 KB |
